JGB37-520 DC Geared Motor 12Vdc 37 rpm Complete Set With Encoder

DIY JGB37-520 12V 37RPM Encoder Motor Smart Car Kit

DC12V with 37 RPM:

• Working Voltage: 12Vdc
• Reduction Ratio: 270
• No-load Current: ≤120 mA
• No-load Speed: 37 RPM
• Rated Torque: 30.0 Kg.cm
• Rated Speed: 28 RPM
• Rated Current: ≤1 A
• Maximum Torque: 35 Kg.cm
• Stall Current: 2.3 A
• L Length: 26.5 MM (See drawing photo)

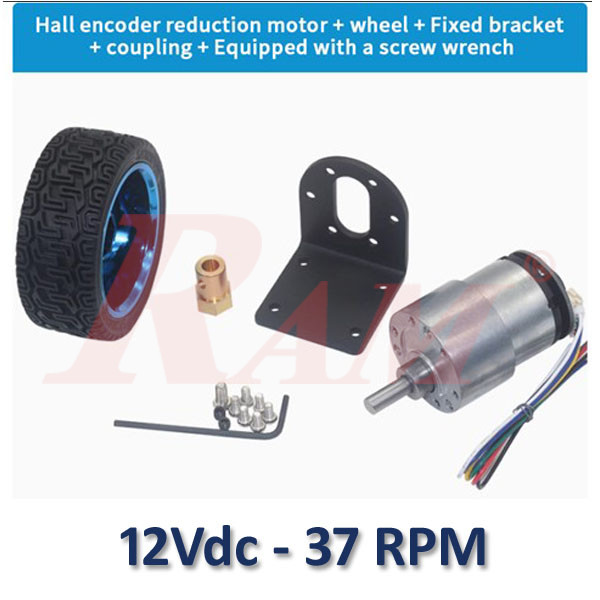

Package Contain:

• 1*Gear Motor with Encoder
• 1*Bracket
• 1* 6mmCoupling
• 1* 65mm Wheel
• Screws Set

Encoder Data:

• Output Signal: Square Wave
• Power Supply Voltage Range: 3.3V-5V
• Working Temp.: -20C - 120C

Wire Connections:

• Red: (+) Motor Power (can be reversed for (-) power to reverse motor rotation)
• Balck: (-) Encoder power supply GND (3.3V ~ 5V)
• Yellow: Encoder A phase - Signal feedback (11 pulses per revolution)
• Green: Encoder B phase - Signal line resolution 11 * reduction ratio = Resolution
•  Blue: (+) Encoder power supply (3.3V ~ 5V)
• White: (-) Motor Power (can be reversed for (+) power to reverse motor rotation)
