Overview:

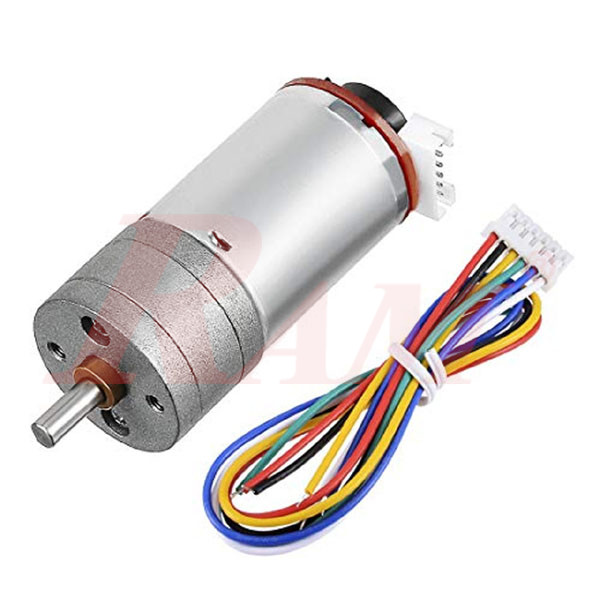

High-torque, low-speed DC gear motor designed for small robots, smart locks, automation systems, and DIY electronics. Compact and efficient with metal gear construction.
Specifications:

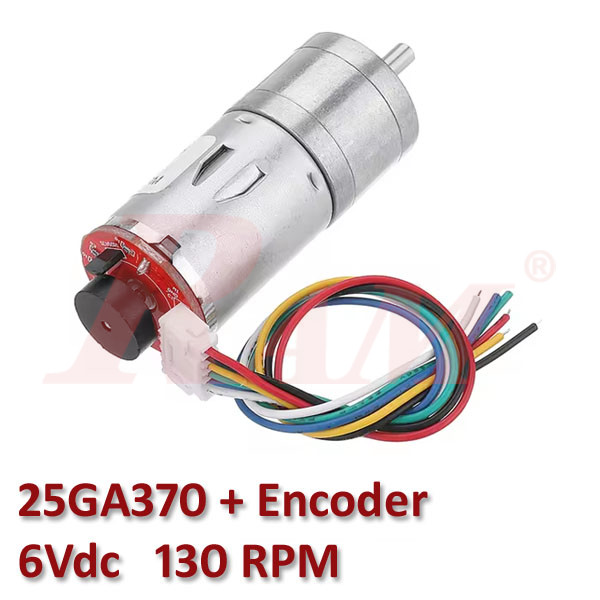

- Model: JGA25-370-46.8K
- Built-in Encoder: YES - for position/speed feedback
- Operating Voltage: 6V DC
- No-Load Speed: 130 RPM ±10%
- No-Load Current: 0.1 A
- Rated Speed: 100 RPM
- Rated Current: 0.5 A
- Rated Torque: 0.8 kg.cm
- Stall Torque: 4.4 kg.cm
-
Stall Current: 2.6A
- Gear Ratio: ~ 46.8K : 1

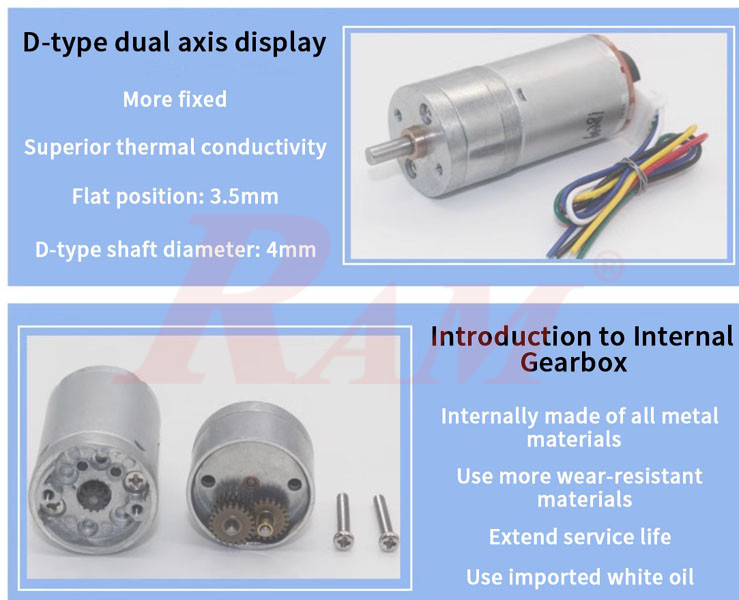

- Motor Type: Brushed DC with Metal Gearbox

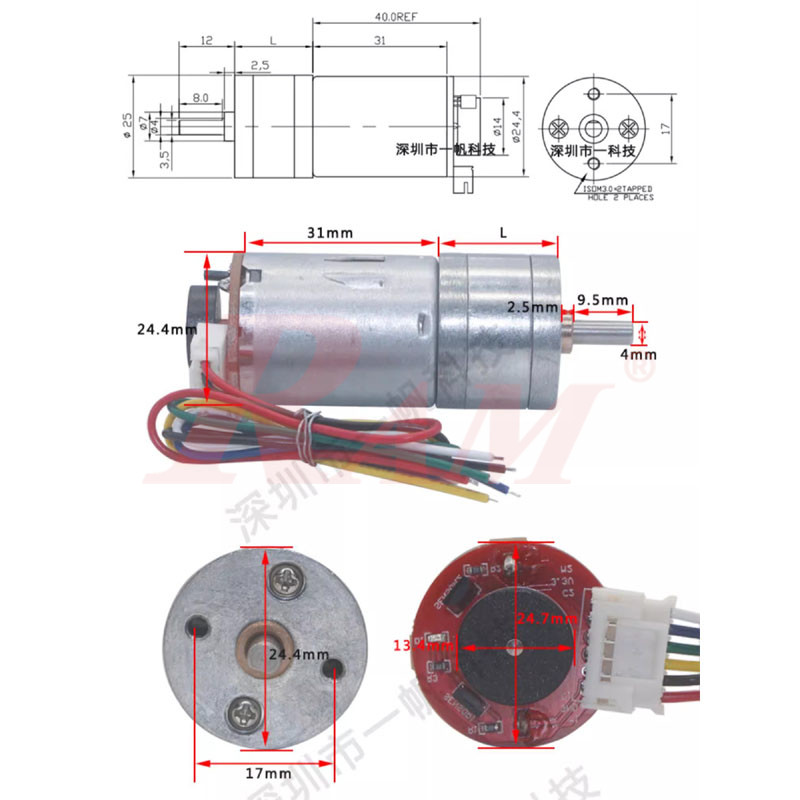

- Motor Diameter: 25 mm
- Shaft Diameter: 4 mm
- Weight: 88 g
- Body Size (L×R): 21 mm × 25 mm
Encoder Data:
- Output Signal: Square Wave
- Power Supply Voltage Range: 3.3V-5V
- Working Temp.: -20C - 120C

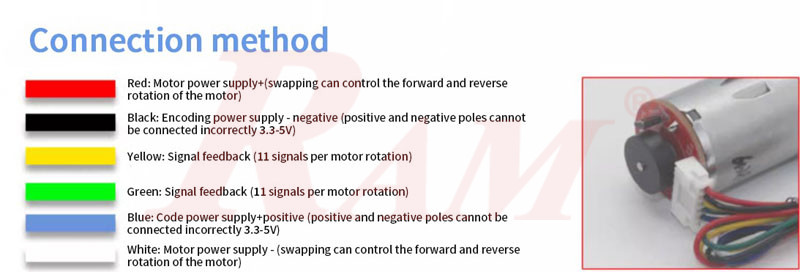

Wire Connections:
- Red: (+) Motor Power (can be reversed for (-) power to reverse motor rotation)
- Balck: (-) Encoder power supply GND (3.3V ~ 5V)
- Yellow: Encoder A phase - Signal feedback (11 pulses per revolution)
- Green: Encoder B phase - Signal line resolution 11 * reduction ratio = Resolution
- Blue: (+) Encoder power supply (3.3V ~ 5V)
- White: (-) Motor Power (can be reversed for (+) power to reverse motor rotation)
Features:
- Compact with high torque output
- Reliable performance under continuous load
- Ideal for small-scale automation and mobility projects
