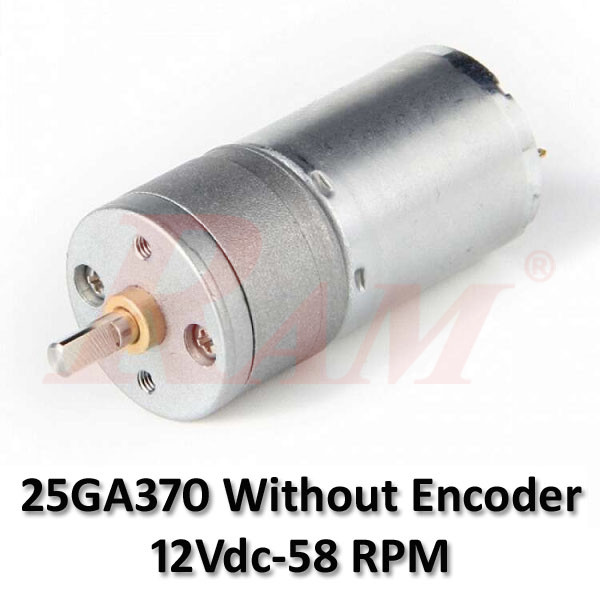

25GA370 DC Geared Motor 12Vdc 58 RPM
The 25GA-370 DC geared motor is optimized for low-speed, higher-torque applications. Operating at 12V DC, this model delivers a no-load speed of 58 RPM, making it suitable for mechanisms that require smooth motion with increased load capability. It features an all-metal gearbox and a 4mm D-shaped output shaft for reliable and durable operation.
Specifications
- Motor Speed before reduction: 6000 RPM
- Reduction Ratio: 103 : 1
- Rated Speed: 48 RPM
- No-Load Speed: 58 RPM
- Operating Voltage: 12V DC
- Built-in Encoder: NO
- Ultimate Load Torque: 8.5 kgf·cm
- Rated Torque: 1.8 kgf·cm
- No-Load Current: 0.05 A
- Rated Current: 0.35 A
- Rated Input Power: 4.8 W
- Limit (Stall) Current: 1.8 A
- Ultimate (Stall) Power: 10.8 W
- Shaft Diameter: 4 mm (D-shaped)
- Gearbox Type: All-metal gears
- Gearbox Length (L size): 23 mm
- Motor Weight: Approx. 98 g
- Built-in Encoder: No
- Motor Type: Brushed DC Motor
Applications
- Robotics joints and drive systems
- Smart locks and valve actuators
- Automation mechanisms
- DIY projects requiring higher torque at low speed
