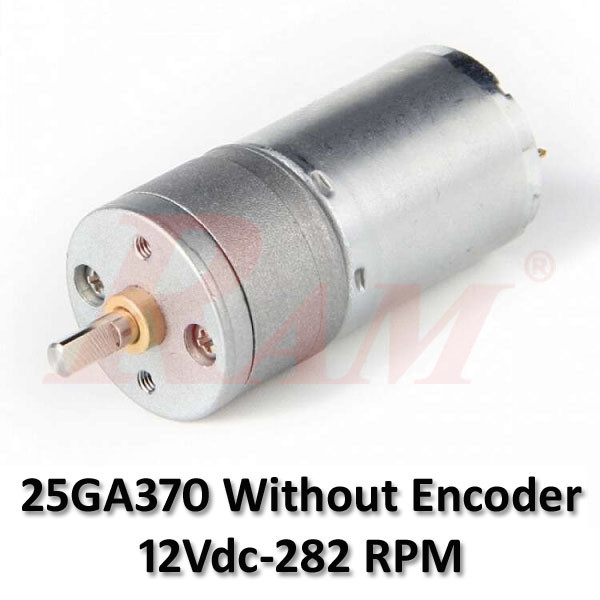

25GA370 DC Geared Motor 12Vdc 282 RPM
The 25GA-370 DC geared motor is a compact and efficient solution for applications that require moderate speed with stable torque. Operating at 12V DC, this model provides a no-load speed of 282 RPM. It features a high-quality all-metal gearbox and a 4mm D-shaped output shaft, ensuring durability and reliable performance in continuous operation.
Specifications
- Motor Speed before reduction: 6000 RPM
- Reduction Ratio: 21.3 : 1
- Rated Speed: 225 RPM
- No-Load Speed: 282 RPM
- Operating Voltage: 12V DC
- Built-in Encoder: NO
- Ultimate Load Torque: 1.7 kgf·cm
- Rated Torque: 0.4 kgf·cm
- No-Load Current: 0.05 A
- Rated Current: 0.35 A
- Rated Input Power: 4.8 W
- Limit (Stall) Current: 1.8 A
- Ultimate (Stall) Power: 10.8 W
- Shaft Diameter: 4 mm (D-shaped)
- Gearbox Type: All-metal gears
- Gearbox Length (L size): 21 mm
- Motor Weight: Approx. 96 g
- Built-in Encoder: No
- Motor Type: Brushed DC Motor
Applications
- Mobile robots and small drive systems
- Automation mechanisms
- Smart devices and actuators
- DIY electronics and educational projects
