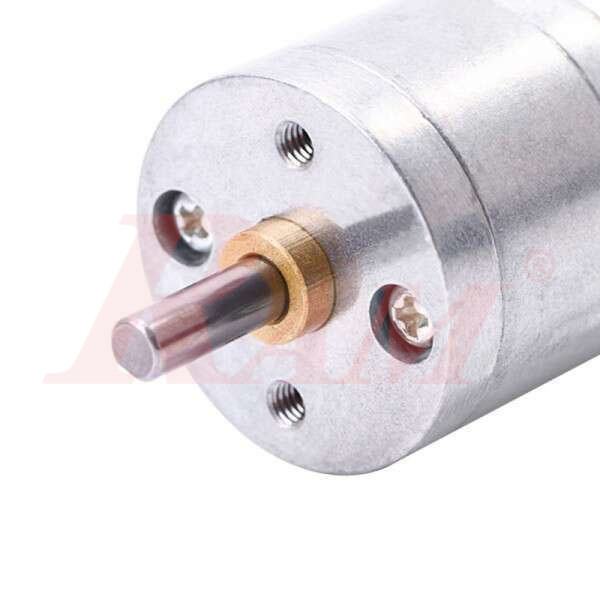

This compact and robust 25GA-370 DC geared motor operates at 12V DC and provides a no-load speed of 169 RPM. With its all-metal gearbox and 4mm D-shaped output shaft, it is well suited for applications that require reliable torque, stable speed, and long service life.
Specifications
- Motor Speed before reduction: 6000 RPM
- Reduction Ratio: 35.5 : 1
- Rated Speed: 135 RPM
- No-Load Speed: 169 RPM
- Operating Voltage: 12V DC
- Built-in Encoder: NO
- Ultimate Load Torque: 3.2 kgf·cm
- Rated Torque: 1.0 kgf·cm
- No-Load Current: 0.05 A
- Rated Current: 0.35 A
- Rated Input Power: 4.8 W
- Limit (Stall) Current: 1.8 A
- Ultimate (Stall) Power: 10.8 W
- Shaft Diameter: 4 mm (D-shaped)
- Gearbox Type: All-metal gears
- Gearbox Length (L size): 21 mm
- Motor Weight: Approx. 96 g
- Built-in Encoder: No
- Motor Type: Brushed DC Motor
Applications
- Robotics and automation projects
- Smart home mechanisms
- Linear actuators and electric locks
- DIY electronics and small machinery
