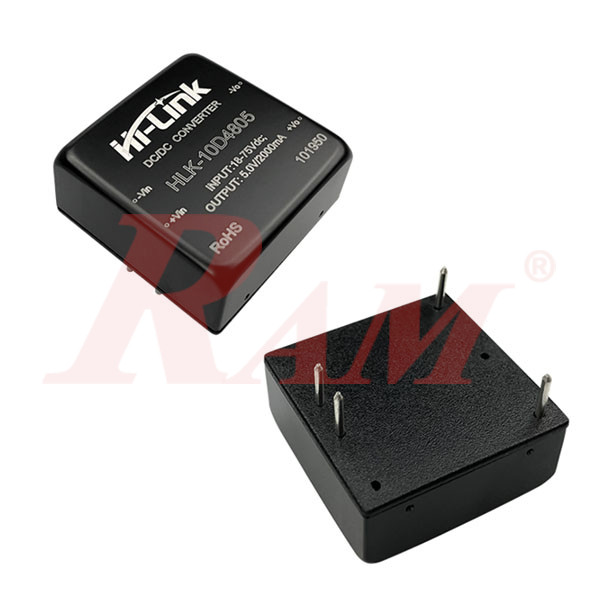

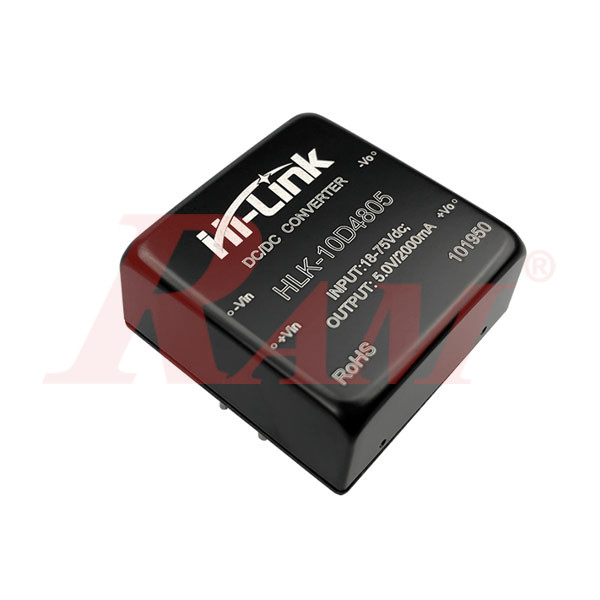

10W DC / DC power module A series output power is 10W, 4: 1 wide voltage input range, efficiency up to 91%, 1500VDC conventional isolation voltage, allow working temperature -40 ℃ to + 85 ℃, with input under-voltage protection, Output over-voltage, over-current, short-circuit protection, bare metal meets CISPR32 / EN55032 CLASS A, widely used in medical, industrial control, power, instrumentation, communications, railway and other fields.
Electrical Characteristics
- No-load rated output voltage: 5V±2% Vdc
- Short-time maximum output current: ≥2200 mA
- Rated output current: 2000 mA
- Rated input voltage 48 Vdc
- Input voltage range 18-75 Vdc
- Max input current ≤0.4 A
- Impulse voltage ≤100 Vdc
- Starting voltage 18 Vdc
- Start delay time 1 ms
Product Features
- Ultra-wide range input (4: 1), output 10W
- Conversion efficiency 91% (Typ)
- Isolation voltage 1500Vdc
- Ultra-low standby power consumption: 0.036W (typical)
- Ultra-fast startup: 1mS (typical value)
- Operating temperature range: -40 ° C ~ + 85 ° C
- Input under voltage, output short circuit, over current, over voltage
- Metal casing, low output ripple
- International standard pins, PCB board in-line installation
- Adopting high-quality environmental protection waterproof and thermally conductive adhesive potting, moisture-proof, vibration-proof, meet the waterproof and dustproof IP65 standard
- High reliability, long life design, long continuous working time
Environment conditions
- Items Technical parameters Unit Remarks
- Working temperature -40~+85 ℃
- Storage temperature -40~+80 ℃
- Relative humidity 5~95 %
- Heat dissipation method: Natural cooling
