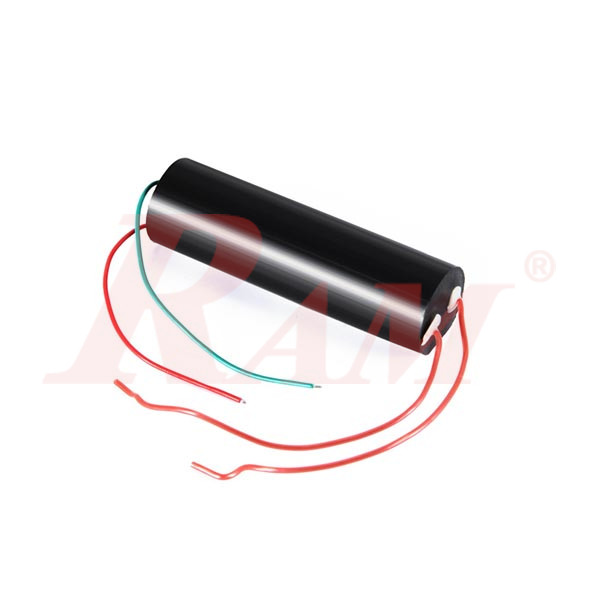

DC-DC Step Up Power Module - High Voltage (3~6Vdc to 400KV) SKU#DC500

https://ram-electronics.odoo.com/web/image/product.template/7951/image_1920?unique=9b97f50

275.00 EGP 275.0 EGP 275.00 EGP

275.00 EGP

Not Available For Sale

This combination does not exist.

 Pick up from RAM Store
 Shipping: 2-3 Business Days


Internal Reference: DC.DC.500

Features:

  • input voltage: DC 3 V to 6 V
  • Input current: 3 A - 6 A
  • High-pressure type: the type of pulse current
  • Output voltage: 400000V (400KV) (Please pay attention to safety)
  • High-pressure discharge distance between 10 mm - 20 mm

Wiring:

  • Red and green power connection red line:"+" green line "-"
  • output: From another wire side

Please notice:

The high-voltage module should avoid the use of electricity in high-voltage no-load. (Power must be adjusted to a suitable distance to the high-voltage output line, battery capacity is proportional to the distance and the use of the high-pressure arc ( not a voltage as high as possible, you must provide enough current). Experimental test of the arc distance from short to long, Do not exceed the maximum arc distance electricity, energy can not be released due to high pressure, can easily damage the module. )

Work:

Intermittent, continuous work does not allow more than 1 minute and the output side does not allow shorting. Improper voltage and long working hours easily damage the module.
