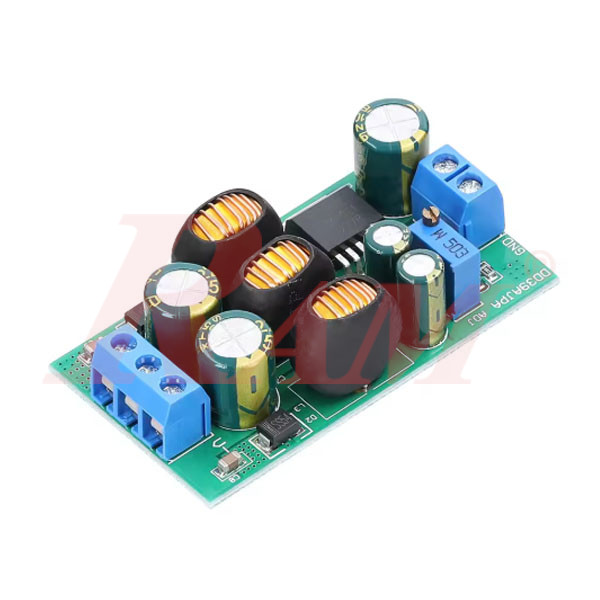

The 20W DC3.6-30V Booster and Buck Positive & Negative Module is a versatile power supply module designed to convert input voltage to a desired output voltage, either stepping it up (boosting) or stepping it down (buck). Here are some key features and specifications typically associated with such modules:
Features:
1. Input Voltage Range:
- The module accepts a wide input voltage range of 3.6V to 30V DC, making it suitable for various applications.
2. Output Voltage Range:
- It provides an adjustable output voltage of ±3V to ±30V, allowing for both positive and negative voltage outputs. This is particularly useful in applications requiring dual-polarity power supplies.
3. Power Rating:
- The module is rated for a maximum output power of 20W, which means it can handle a significant load while maintaining efficiency.
4. Adjustable Output:
- The output voltage can be adjusted using onboard potentiometers, enabling users to set the desired voltage level easily.
5. High Efficiency:
- These modules typically feature high efficiency (often above 85%), which minimizes heat generation and improves overall performance.
6. Compact Design:
- The module is usually compact and lightweight, making it easy to integrate into various projects and applications.
7. Protection Features:
- These modules come with built-in protection features such as over-voltage protection, over-current protection, and thermal shutdown to ensure safe operation.
Applications:
- Power Supply for Sensors and Modules: Ideal for powering sensors, microcontrollers, and other electronic components that require specific voltage levels.
- Battery-Powered Devices: Useful in battery-powered applications where voltage needs to be adjusted based on the battery's state of charge.
- Test Equipment: Can be used in laboratories for testing and prototyping electronic circuits that require different voltage levels.
- Audio Equipment: Suitable for audio applications where dual polarity power supplies are needed.
Considerations:
- Load Current: Ensure that the load current does not exceed the module's specifications to avoid damage.
- Heat Dissipation: Depending on the load and usage, consider heat dissipation methods, such as heatsinks, to maintain optimal performance.
- Input/Output Connections: Properly connect the input and output terminals to avoid short circuits or incorrect voltage levels.
Conclusion:
The 20W DC3.6-30V Booster and Buck Positive & Negative Module is a flexible and efficient solution for various electronic projects requiring adjustable voltage levels. Its ability to provide both positive and negative outputs makes it particularly valuable in applications where dual polarity is necessary.
