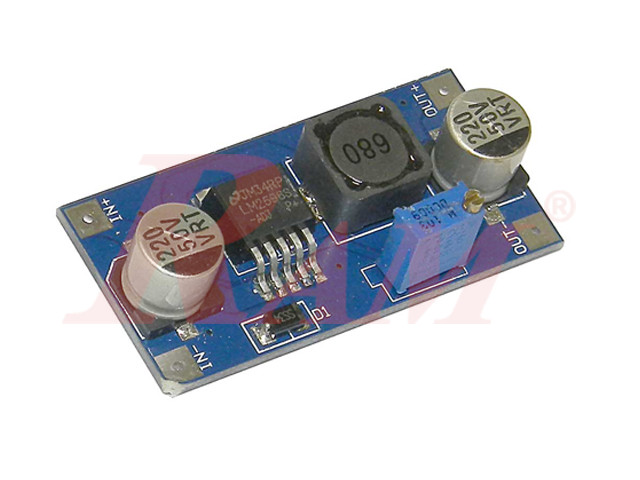

Variable Output DC-DC Step Down Converter (based on LM2596S)
DC-DC Buck Converter Step Down Module LM2596 Power Supply is a step-down(buck) switching regulator, capable of driving a 3-A load with excellent line and load regulation. These devices are available in fixed output voltages of 3.3 V, 5 V, 12 V, and an adjustable output version.
The LM2596 series operates at a switching frequency of 150kHz, thus allowing smaller sized filter components than what would be required with lower frequency switching regulators.
Features:
- Input voltage: 4-38V
- Output voltage:1.5-35V(Adjustable)
- Output current: Rated current is 2A, maximum 3A (Additional heatsink is required)
- Module Properties: non-isolated constant voltage module
- Rectification: non-synchronous rectification
- Short circuit protection: current limiting, since the recovery
- Dimension: 43.5 x 21 x 14mm (L x W x H)
