Export-Based Multi-currency Coin-operated Video Game Coin-operated
Features
- High accuracy in detecting counterfeit coins based on material and diameter.

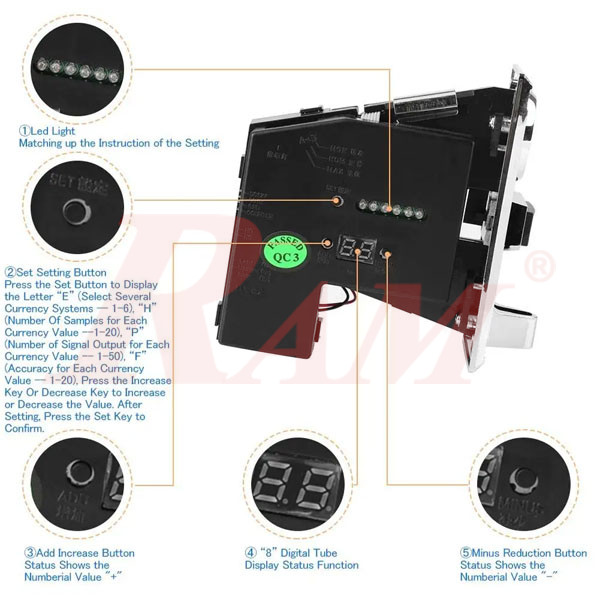

- Freely set the required currency without comparing to sample coins — CPU automatically memorizes the set.
- Supports simultaneous recognition of up to 2 different coin types.

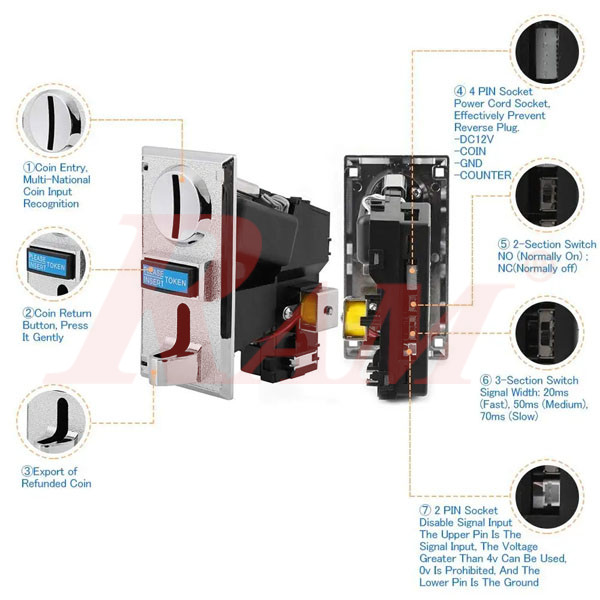

- Three pulse speed signal outputs with N.O. and N.C. output switch adjustment for versatile applications.
- Signal output mode can be modified (pulse mode).
- Optional accumulative signal output and time control functions.
- Optional coin acceptance prohibition function.
- Smooth coin passage with excellent anti-fishing design.
- Compatible with counters and vending platforms.
Specifications

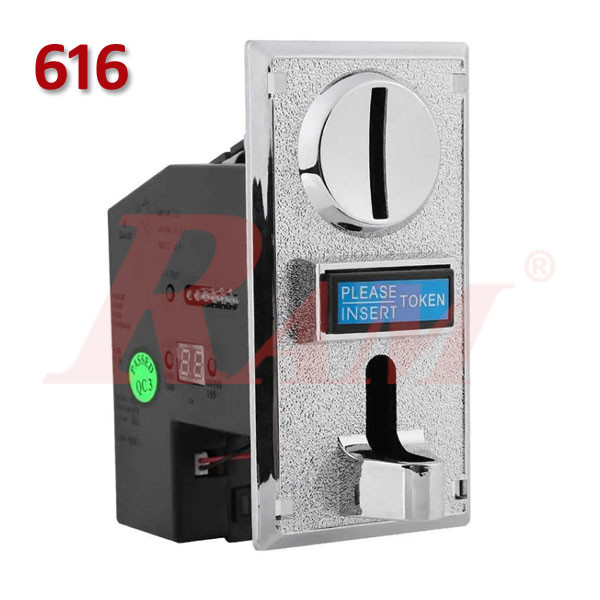

- Item Name: Coin Selector / Acceptor
- Supported Coins: Up to 6 different types
- Applications: Arcade machines, vending machines, massage chairs, etc.
- Coin Diameter Range: 15–29 mm (0.59–1.14 inch)
- Coin Thickness Range: 1.8–3.0 mm
- Atmospheric Pressure: 80–106 kPa
- Operating Voltage: DC 12V ±10%
- Working Current: 50 mA
- Peak Current: 350 mA (less than 0.5 s)

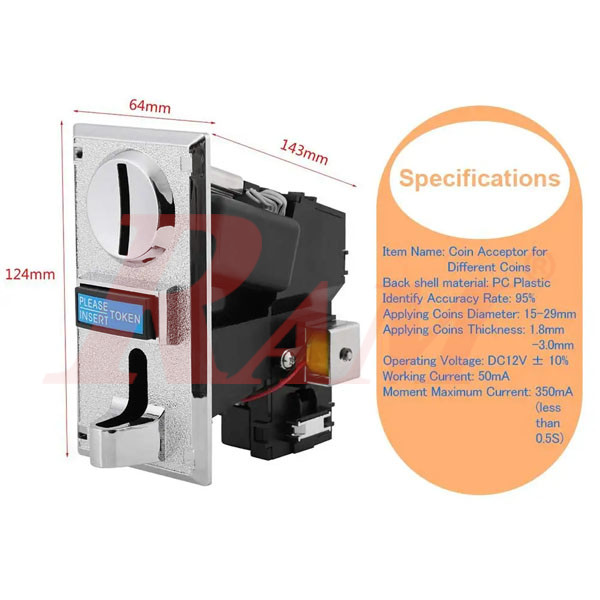

- Dimensions: 64 × 124 × 143 mm
- Mounting Hole Size: 5 × 5 mm
- Hole Pitch: 46 × 97 mm

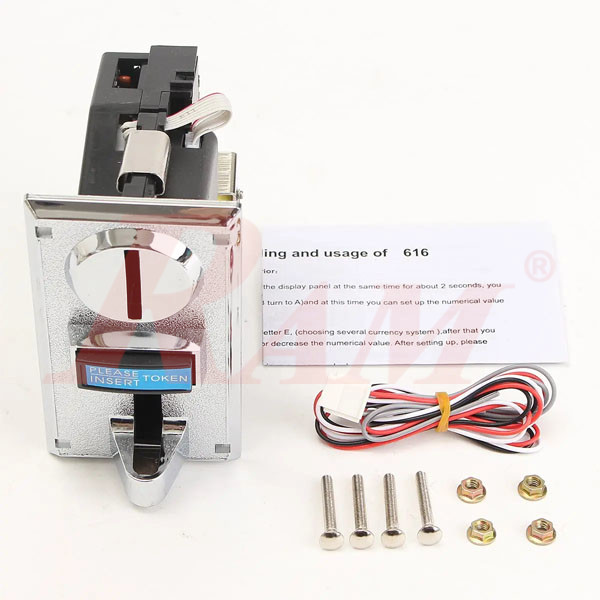

Package Includes:
- 1 × Multi-Coin Acceptor
- User Manual
