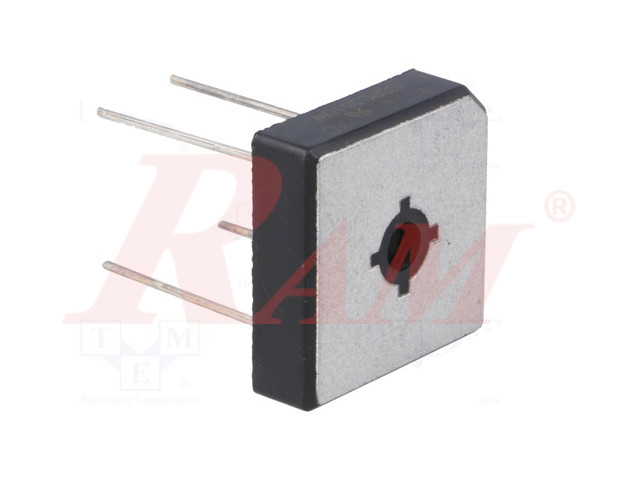

Bridge Rectifier 35 Ampere Isolated Wire Lead Type - Square Shape

GBPC3510W High Power Bridge Rectifier (35 Amperes 1000 Volts - Wire Lead Type)

Product Description

The GBPC3510W is a heavy-duty, metal-cased single-phase bridge rectifier designed for high-current Alternating Current (AC) to Direct Current (DC) power conversion. Featuring a continuous forward current capacity of 35 Amperes and a peak repetitive reverse voltage rating of 1000 Volts, it converts AC power into reliable, smooth DC output.

This "W" suffix model is equipped with four heavy-gauge copper wire leads (pins) for direct printed circuit board (PCB) through-hole mounting or direct wire soldering. Housed in an electrically isolated glass-passivated metal enclosure with a center mounting hole, it provides optimal thermal dissipation when attached to a heat sink, making it ideal for industrial DC power supplies, battery chargers, motor speed controllers, and power inverters.

Key Features

• High Current and Voltage Rating: Supports continuous forward currents up to 35 Amperes and reverse breakdown voltages up to 1000 Volts.
• Through-Hole Wire Leads: Features heavy-duty copper wire terminals ("W" package) ideal for PCB mounting or direct wire soldering.
• Glass Passivated Junctions: Glass passivated diode chips ensure low reverse leakage current and high reliability under thermal stress.
• Electrically Isolated Metal Case: Premium aluminum metal housing provides maximum heat dissipation while remaining electrically isolated from internal diodes.
• High Surge Capacity: High forward surge current rating up to 400 Amperes protects connected circuits against sudden inrush currents.
• Easy Heat Sink Mounting: Pre-drilled center clearance hole allows convenient mounting onto cooling plates or aluminum heat sinks with standard M5 screws.

Product Specifications

• Model: GBPC3510W
• Product Type: Single-Phase Full-Wave Bridge Rectifier (Wire Lead Version)
• Maximum Repetitive Peak Reverse Voltage: 1000 Volts
• Maximum RMS Voltage: 700 Volts
• Maximum Average Forward Output Current: 35 Amperes (with suitable heat sink)
• Peak Forward Surge Current: 400 Amperes (8.3 milliseconds single half sine-wave)
• Maximum Forward Voltage Drop: 1.1 Volts per element at 17.5 Amperes
• Operating Temperature Range: minus 55 degrees Celsius to plus 150 degrees Celsius
• Dimensions: 28.5 millimeters by 28.5 millimeters by 11.2 millimeters
• Terminal Type: 4 Wire Leads / Round Pins (1.0 millimeter diameter)

Pinout and Terminal Wiring

The terminals are clearly identified on the body of the metal casing:

• AC Terminals (marked with tilde symbol): Connect to the two AC input lines from your power transformer or AC source.
• Positive Terminal (marked with plus symbol): DC positive output terminal (+ VDC).
• Negative Terminal (marked with minus symbol): DC negative output terminal (- VDC / Ground).

Download

• Datasheet
