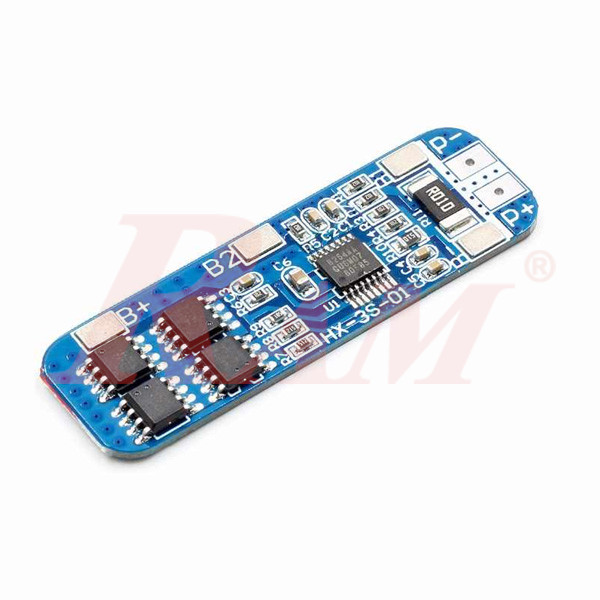

BMS 3 String 12V/10A

http://www.ram-e-shop.com/web/image/product.template/7747/image_1920?unique=107b7a4

Original MOSFET Transistors
18650 Cell Lithium Battery Protection Board 11.1V Current Peak 10A Over-Current Protection

65.00 EGP 65.0 EGP 65.00 EGP

65.00 EGP

Not Available For Sale

This combination does not exist.

 Pick up from RAM Store
 Shipping: 2-3 Business Days


Internal Reference: BMS.3S.10A

3S 12V 18650 Lithium Battery Protection Board Current Peak 10A Overcurrent Protection

Specification:

  • Overvoltage range: 4.25 ~ 4.35v ± 0.05v
  • Over-discharge voltage range: 2.3 ~ 3.0v±0.05v
  • Maximum operating current: 5 ~ 8A
  • Maximum transient current: 9 ~ 10A
  • Quiescent current: less than 6uA
  • Internal resistance: less than 60m
  • Working temperature: 40 +50 C
  • Effective life: more than 30000h
  • Short circuit protection: Yes, delayed self-recovery
  • Size: 50mm x 16mm x 1.2mm (LxWxH)

Important Cautions:

  1. Strictly according to the diagram wiring - do not make short circuit.
  2. After the wire is connected, it needs to charge the batteries first, then have output.
  3. When the battery is connected in series with 5 groups, please ensure that the voltage of each battery is the same. If not the same, please fill in each set of batteries and then use them.
  4. Do not mix the good battery and the bad battery.
  5. It will be better if the capacity of the battery's internal resistance is closer.
