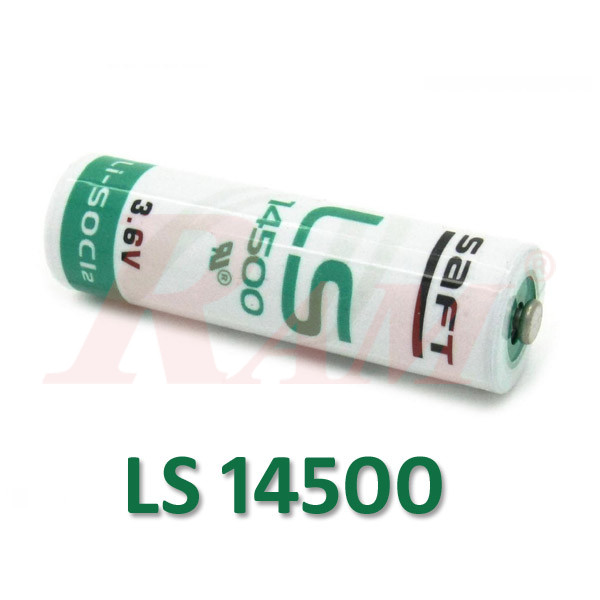

Saft LS-14500 Lithium Battery 3.6V (Li-SOCI2)
Internal Reference:
BATTERY.SAFT.LS14500
The Saft LS 14500 is a lithium battery known for its high energy density and reliability. It is a cylindrical cell with a nominal voltage of 3.6 volts and a capacity typically around 2,600 mAh. This battery is designed for a variety of applications, including industrial equipment, medical devices, and consumer electronics.
Key features of the Saft LS 14500 include:
- Long Shelf Life: The battery can maintain its charge for extended periods, making it suitable for devices that are not used frequently.
- Wide Operating Temperature Range: It performs well in various environmental conditions, typically from -40°C to +85°C.
- Low Self-Discharge Rate: This characteristic allows the battery to retain its charge longer when not in use.
- Safety and Reliability: Saft batteries are known for their robust construction and safety features, reducing the risk of leakage or failure.
The Saft LS 14500 is a lithium thionyl chloride (Li-SOCl2) battery, commonly used in various applications due to its high energy density and long shelf life. Below are the technical specifications for the Saft LS 14500 battery:
Technical Specifications
- Type**: Lithium Thionyl Chloride (Li-SOCl2)
- Model**: LS 14500
- Nominal Voltage**: 3.6 V
- Capacity**:
- Typical: 2,600 mAh
- Minimum: 2,500 mAh
- Dimensions:
- Diameter: 14.5 mm
- Height: 50.5 mm
- Operating Temperature Range:
- Discharge: -55°C to +85°C
- Storage: -55°C to +30°C
- Self-Discharge Rate: < 1% per year at +20°C
- Energy Density: Approximately 500 Wh/kg
- Chemistry: Lithium thionyl chloride
- Discharge Characteristics:
- Continuous discharge current: Up to 1.0 mA (depending on application)
- Pulse discharge current: Up to 3.0 mA
- Shelf Life: Up to 10 years at room temperature
- Termination Voltage: 2.0 V (discharge cut-off)
- Safety Features:
- Over-temperature protection
- Short-circuit protection
- Non-rechargeable (primary battery)
Applications
The Saft LS 14500 battery is widely used in applications such as:
- Remote monitoring systems
- Utility metering
- Alarm systems
- Medical devices
- Industrial applications
Notes
- The LS 14500 battery is not rechargeable and should not be used in applications that require rechargeable batteries.
- Proper disposal according to local regulations is recommended due to the chemical composition of the battery.
