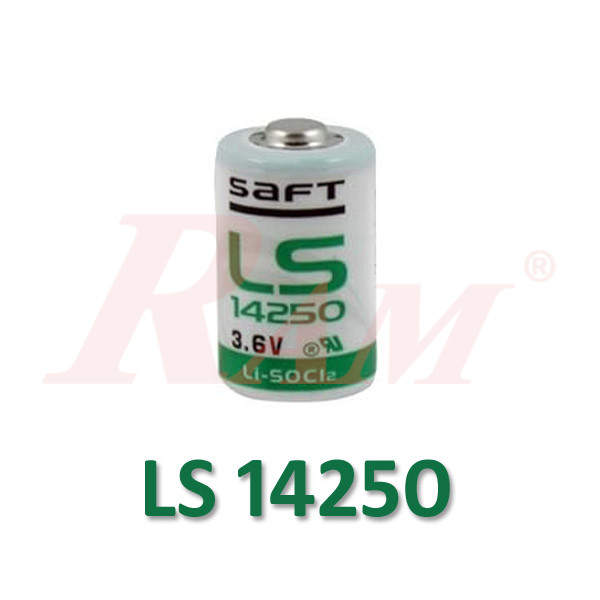

Saft LS-14250 Lithium Battery 3.6V (Li-SOCI2)
Internal Reference:
BATTERY.SAFT.LS14250
The Saft LS-14250 is a high-performance lithium battery designed for a variety of applications, particularly in industrial and commercial settings. With a nominal voltage of 3.6V, this battery is known for its long shelf life and excellent energy density, making it ideal for devices that require reliable and sustained power over extended periods.
Key features of the Saft LS-14250 include:
- Chemistry: Lithium thionyl chloride (Li-SOCl2), which provides a high energy density and stable voltage output.
- Capacity: Typically around 1200 mAh, allowing for prolonged use in low-drain applications.
- Temperature Range: Operates effectively in a wide temperature range, from -55°C to +85°C, making it suitable for harsh environments.
- Applications: Commonly used in remote monitoring systems, alarms, medical devices, and other electronic equipment that requires long-lasting power.
The Saft LS-14250 is recognized for its reliability and safety, making it a preferred choice for critical applications where battery failure is not an option.
General Specifications
- Type: Lithium Thionyl Chloride (Li-SOCl2)
- Nominal Voltage: 3.6 V
- Nominal Capacity: 1200 mAh (typical)
- Dimensions:
- Diameter: 14.5 mm
- Height: 25 mm
Electrical Characteristics
- Operating Temperature Range: -55°C to +85°C
- Self-Discharge Rate: < 1% per year at 20°C
- Maximum Continuous Discharge Current: 100 mA
- Pulse Discharge Current: Up to 300 mA (for short durations)
- Internal Resistance: Typically around 300 ohms (at 20°C)
Performance Characteristics
- Shelf Life: Up to 10 years at room temperature
- Discharge Characteristics: Stable voltage output over a wide range of temperatures and discharge rates
- End of Life Voltage: 2.0 V (cut-off voltage)
Safety Features:
- Non-rechargeable
- Designed to prevent leakage and venting
- Environmental Considerations:
- Contains no heavy metals (e.g., mercury, cadmium)
- Complies with RoHS regulations
Applications
- Remote monitoring devices
- Metering applications
- Alarm systems
- Medical devices
- Industrial applications
