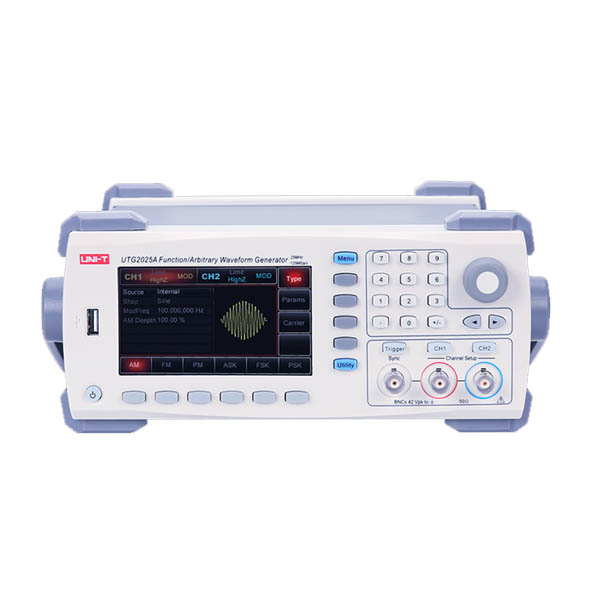

The UTG2025A redefines the entry-level waveform generator by bringing advanced capabilities like 14-bit high resolution, and 125MSa/s sampling rate to our most affordable line of generators. 200 built-in arbitrary waveforms enabled.
The UTG2025A delivers a powerful low-cost signal generator for students and engineers alike.
- MAX. OUTPUT FREQUENCY: 25 MHz
- SAMPLE RATE: 125 MSa/s
- VERTICAL RESOLUTION: 14 bits
- CHANNELS: 2
- ARBITRARY WAVE LENGTH: 8 Kpts
- DISPLAY: 4.3 inch TFL LCD
25MHz maximum frequency output, multiple waveform signals
2Channl,25MHz maximum frequency output, multiple waveform signals are available:
- Sine wave
- Square, ramp
- Pulse, noise
- DC
- arbitrary waveform
Multiple modulation functions
Multiple analog and numerical modulation functions:
Modulation type: AM, FM, PM, ASK, FSK, PSK, PWM
Built-in 48 arbitrary waveforms
UTG2000A built-in non-volatile 48 kinds of standard waveforms, commonly used functions, mathematical functions, trigonometric functions, window functions
Sweep mode and burst mode function
Sweep mode:
It can scan output in linear or logarithmic mode from high to low and low to high.
Burst mode function:
Provides three types of pulse trains: N cycle cycle, infinite and gated.
