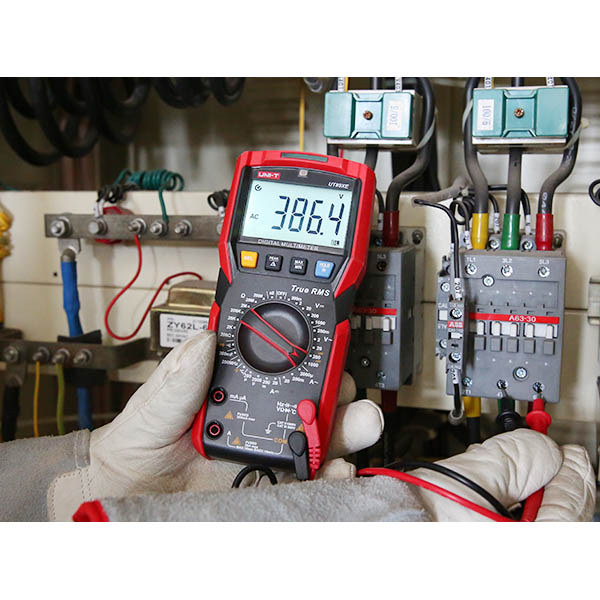

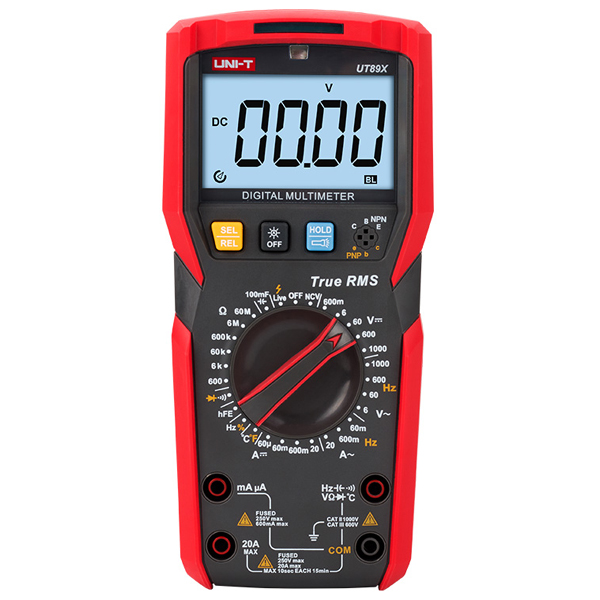

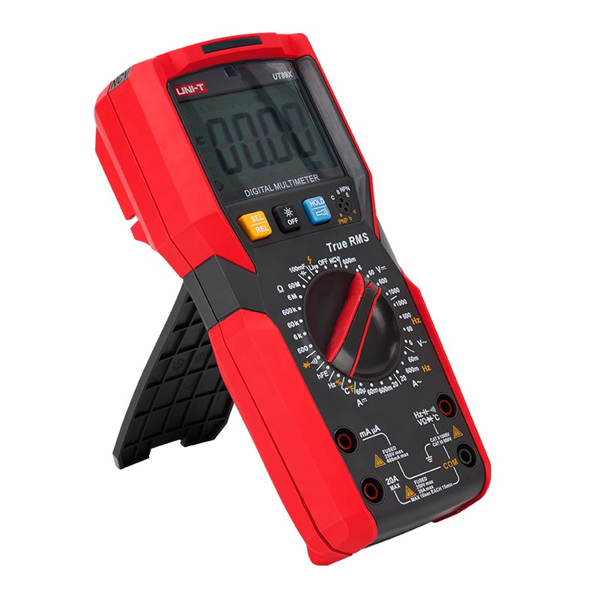

UT89X/UT89XD is a reliable hand-held 3 5/6 bit digital multimeter with true RMS sine wave measurement. It can measure Max. 1000V DC/AC voltage, Max. 20A DC/AC current, resistance, capacitance, frequency, diode, hFE, continuity, and NCV, quickly distinguishing between neutral and live wires accurately.
UT89X can measure temperature and detect neutral and live wires with a test lead. Equipped with audible and visible alarms, a flashlight, and auto backlight functions, this series can be used in a dark environment. It attracts users with its bi-color durable case, modern exterior, and multiple functions.
Features
- 1000V AC/DC； 20A AC/DC
- True RMS, 6000 count
- Dual range NCV test which quickly identifies neutral and live wires through light intensity
- Audible/visual alarm
- Capacitor charging indicator
- Ergonomic design
- Double injection molding
- 1m drop proof
- Flashlight; Auto backlight
| Specifications | Range | UT89X |
| DC voltage (V) | 600mV/6V/60V/600V/1000V | ±(0.5%+2) |
| AC voltage (V) | 6V/60V/600V/1000V | ±(0.8%+5) |
| DC current (A) | 60μA/60mA/600mA/20A | ±(0.8%+8) |
| AC current (A) | 60mA/600mA/20A | ±(1%+12) |
| Resistance (Ω) | 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ | ±(0.8%+3) |

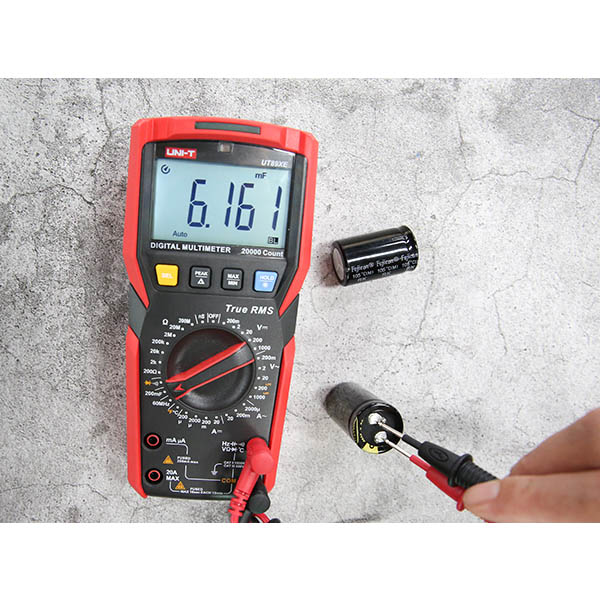

| Capacitance (F) | 100mF | ±(2.5%+20) |
| Frequency (Hz) | 9.999Hz/9.999MHz | ±(0.1%+4) |
| Duty cycle | 0.1%~99.9% | ±(2%+5) |

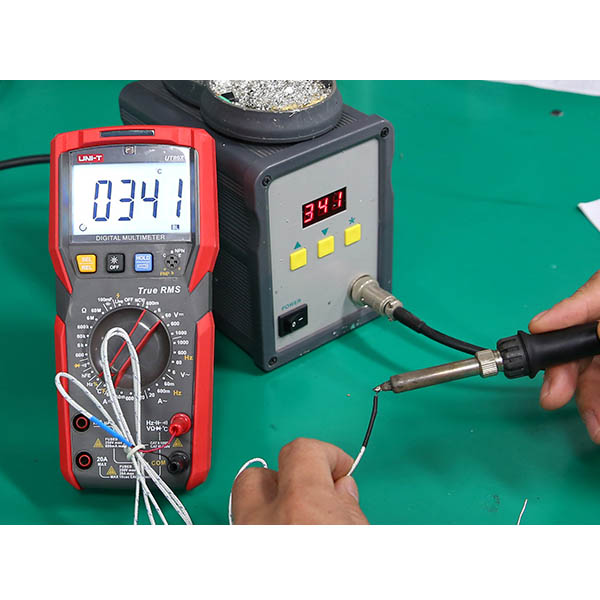

| Temperature (℃) | -40℃~1000℃ | ±(2%+4) |
| Temperature (℉) | -40℉~1832℉ | ±(2%+8) |
| Live wire test | √ | |
| LED test | NO | |
| Audible/visual alarm | V/A/Cap/Diode | Live/hFE/NCV |
| Transistor Hfe | √ | |
| Dual-range NCV test | √ | |
| Flashlight | √ | |
| General Characteristics | ||
| Power | 1.5V battery (R03) x 4 | |
| Display | 61mm x 36mm | |
| Product net weight | 345g | |
| Product size | 189mm x 89mm x 53mm | |
| Standard accessories | Batteries, test lead, k-type temperature probe (UT89X/UT89XE), English manual | |
| Standard individual packing | Gift box |
