UT682 Wire Tracker/Tone and Probe
Cable Wire Tester & Tracker
UNI-T Brand
Internal Reference:
AVO.UT682.UNIT

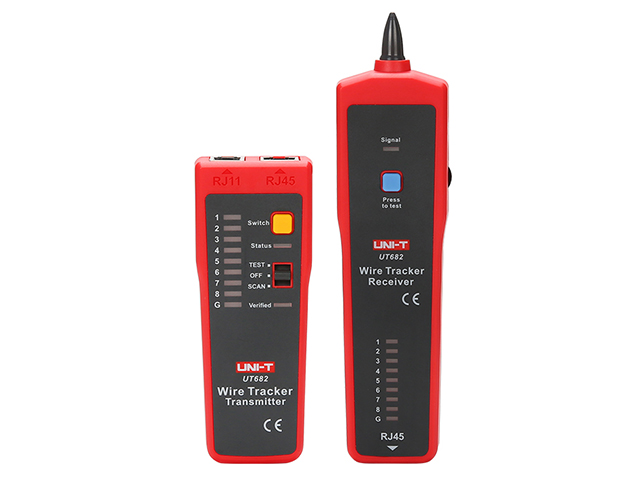

UT682 wire tracker consists of a transmitter and a receiver, it is able to track ethernet/telephone/power cables without opening their insulation. UT682 can troubleshoot ethernet cables and is a recommended tool for debugging communication cables and audio/video cables.
Features
- Telephone/ethernet/power cable tracking
- DC level test, can check voltage level and polarity
- Ethernet cable wiring sequence verification
- Fast open/short circuit test
- Volume adjustment
- Headset connection for noisy environment
- Dual measurement cycle mode
- Low battery indication
Specifications | Range | UT682 | |
Wire tracking features | Wire types | LAN cable\telephone line\coaxial cable\electric wire | |
Indication light for signal strength | √ | ||
Live switchboard wire tracing | √ | ||
Switchboard wire tracing distance | ≥100m | ||
Telephone lines tracking distance | ≥3000m | ||
Unshielded cables tracking distance | ≥320m | ||
Shielded cables tracking distance | ≥320m | ||
Open and short circuit test | √ | ||
Polarity indication for | DCV function, range: | √ | |
telelphone lines | ±(5V~52V) | ||
Telephone lines and LAN cables distinction | Jacks distinction | √ | |
Broken wire tracking | √ | ||
Transmitter output voltage | ≥12V peak-peak | ||
Transmitter low battery indication | 6.6V±0.5V | ||
Transmitter power supply | 9V battery | √ | |
Max transmitter working current | 25mA | ||
Headphone jack for receiver | √ | ||
Receiver power supply | 9V battery | √ | |
Max receiver standby current | ~10mA | √ | |
Max receiver operating current | <40mA (AC, RMS) | √ | |
Wire alignment | Line sequence measurement | 9 LEDs (LED1~LED8, LED_G) | √ |
Line sequence measuring speed | Fast and slow selectable | √ | |
LAN cable: shielded/unshielded indication | √ | ||
Transmitter input | 52V DC | ||
voltage protection | |||
Operating environment | Operating temperature: 0~40℃; Storage temperature: -10~50℃ | ||
Operating humidity: 20~75%RH; Storage humidity: 10~90%RH; Altitude: ≤2000m | |||
General Characteristics | |||
Product Color | Red and grey | ||
Product net weight | UT682: Transmitter-125g, receiver-153g | ||
Product size | UT682: Transmitter-125mm x 48mm x 28mm, receiver-195mm x 48mm x 30mm | ||
Standard accessories | 9V battery x 2, RJ11 cable (UT682), RJ45 cable (UT682), RJ11 cable with alligator clips (UT682) | ||
Standard individual packing | Blister (UT682), carrying bag (UT682), English manual |
