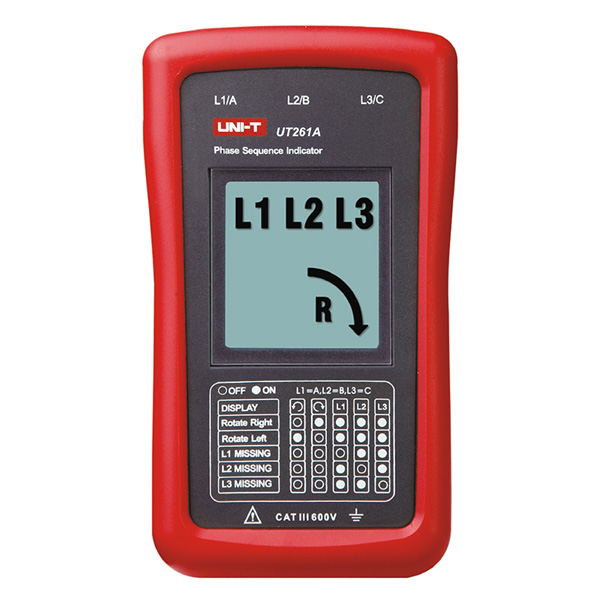

UT261A Phase Sequence & Missing Phase Indicator

https://www.ram-e-shop.com/web/image/product.template/7800/image_1920?unique=0c1a160

UNI-T Brand

1,950.00 EGP 1950.0 EGP 1,950.00 EGP

1,950.00 EGP

Not Available For Sale

This combination does not exist.

 Pick up from RAM Store
 Shipping: 2-3 Business Days


Internal Reference: AVO.UT261A.UNIT

UT261 series is used for determining the 3-phase power phase sequence, missing phase indication. UT261A can measure AC voltage of 40~700V and 90~600V respectively. These devices can operate in frequency range of 15~400Hz. UT261 are durable devices that can withstand impact from 2 meters height. Test leads with protective tubing are included in optional accessories.

Specifications Range UT261A
AC voltage (V) 40V~690V
Frequency (Hz) 15Hz~400Hz
Working current (A)   <1mA
Features
Phase sequence indication   LCD
Missing phase indication   LCD
Motor rotation indication   NOT Support
General Characteristics
Power UT261A: No battery required; UT261B: 9V battery (6F22)
Product Color Red and grey
Product net weight UT261A: 160g; UT261B: 180g
Product size 123mm x 71mm x 29mm
Standard accessories Battery (UT261B), test lead with alligator clip x 3
Standard individual packing Gift box, English manual, carrying bag

Download
