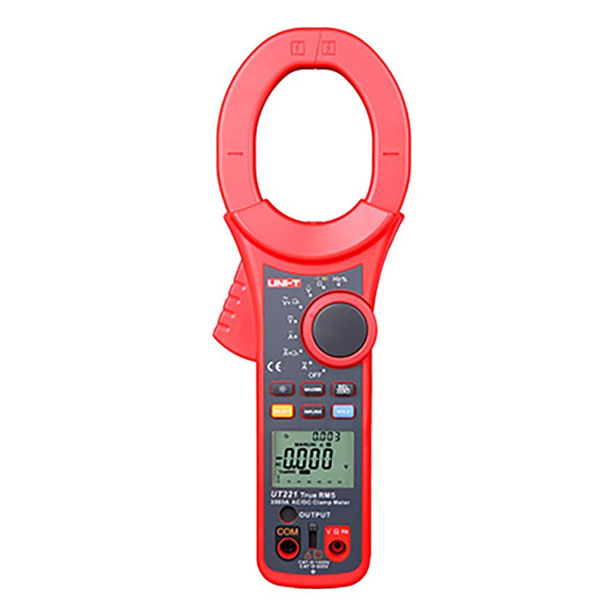

UT221 is a 2000A AC/DC digital clamp meter. This series ensures stable performance, safety, and reliability for measuring up to 2000A AC and DC current. It is designed with over-load protection for all ranges, perfect for all professionals measuring currents up to 2000A.
Features
- Auto range
- Continuity buzzer
- MAX/MIN
- Diode
- Data hold
- Low battery indication
| Specifications | Range | UT221 |
| AC current (A) | 2000A | ±(2.5%+5) |
| DC current (A) | 2000A | ±(2.5%+5) |
| AC voltage (V) | 750V | ±(1.2%+5) |
| DC voltage (V) | 1000V | ±(0.8%+1) |
| Resistance (Ω) | 66MΩ | ±(1%+2) |
| Frequency (Hz) | 20MHz | ±(0.1%+3) |
| Features | ||
| Display count | 6000 | |
| Auto range/Diode | √ | |
| Jaw opening | 63mm | |
| True RMS (AC voltage/AC current) | √ | |
| Duty cycle | 10%~90% | √ |
| Continuity buzzer | √ | |
| Low pass filter | √ | |
| Inrush current | AC current | √ |
| Relative mode | √ | |
| Data hold/MAX | √ | |
| MIN/I-OUT function | √ | |
| Analog bar graph | 66 | |
| Full icon display | √ | |
| Low battery indication | √ | |
| Input impedance | ≥10MΩ | √ |
| General Characteristics | ||
| Power | 9V battery (6F22) | |
| Display | 43mm x 30mm | |
| Product Color | Red and grey | |
| Product net weight | UT221/UT222: 726g | |
| Product size | 298mm x 107mm x 47mm | |
| Standard accessories | Test leads, output cable (UT221/UT222), | |
| Standard individual packing | Tool box (UT221/UT222), English manual |
