  2. UT208B True RMS Digital Clamp Meter 1000A (AC/DC)

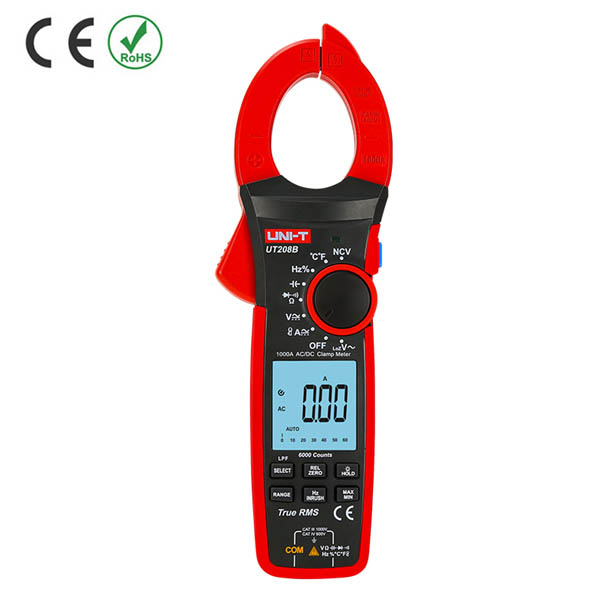

UT208B True RMS Digital Clamp Meter 1000A (AC/DC)

https://ram-electronics.odoo.com/web/image/product.template/7708/image_1920?unique=c558a8b

UNI-T Brand

5,000.00 EGP 5000.0 EGP 5,000.00 EGP

5,000.00 EGP

Not Available For Sale

This combination does not exist.

Contact Us
1 Year Warranty

 Pick up from RAM Store
 Shipping: 2-3 Business Days

Internal Reference: AVO.UT208B.UNIT

UT208B is a 6000-count digital clamp meter with auto range, large LCD, true RMS, autoscale memory, and NCV functions. They conform to CAT III 1000V/CAT IV 600V safety rating andcertified by CE/ETL. The UT208B comes with LoZ mode for eliminating ‘ghost ’voltage, LPF ACV function for measuring INV and VFD voltage, and inrush current mode for capturing transient current. UT208B also features high-precision temperature measurement with 0.1 °C resolution and can be equipped with a flexible current probe to extend the AC current measurement range to 3000A.

Features

  • Flashlight button: Short press this button to turn on/off the flashlight
  • NCV Multi-Segment Display and audio/visual alarm
  • True RMS/Auto backlight
  • NCV/Function retention
Specifications Range UT208B
AC current (A) 1000A ±(2%+5)
DC current (A) 1000A ±(2%+5)
AC current frequency response   40Hz~400Hz
Inrush current (A) 1000A ±(10%+10)
AC voltage (V) 1000V ±(1.2%+3)
DC voltage (V) 1000V ±(0.5%+5)
Low pass filter (LPF ACV) 1000V ±(2%+5)
AC voltage frequency response   40Hz~400Hz
LoZ ACV 1000V ±(2%+5)
Resistance (Ω) 60MΩ ±(1%+2)
Capacitance (F) 60mF ±(4%+5)
Temperature  -40℃~1000℃ ±(1%+2)
   -40℉~1832℉ ±(1%+4)
Low voltage frequency (Hz) 10Hz~1MHz ±(0.1%+3)
Duty cycle (%) 10%~90% ±(2.6%+7)
Analog bar   31
Flexible current probe (optional) Extends up to 3000A √
Zero mode   √
Display count   6000
Jaw opening   42mm
General Characteristics
Power 1.5V battery (R03) x 3
Display 43mm x 45mm
Product net weight UT205E/UT206B: 465g; UT207B/UT208B: 420g
Product size 272mm x 81mm x 43.5mm
Standard accessories Test leads, batteries, point contact temperature probe, English manual
Standard individual packing Gift box, carrying bag

Download
