LHT00SU1 USB Virtual Oscilloscope and 8-Channel Logic Analyzer – I2C, SPI, CAN, UART
Short Description
The LHT00SU1 is a multifunction USB-based electronic test instrument that combines a virtual oscilloscope, 8-channel logic analyzer, data logger, voltmeter, frequency meter, and signal-generation functions in one compact device. Featuring 3MHz analog bandwidth, a maximum sampling rate of 16MS/s, and support for decoding communication protocols such as I2C, SPI, UART, and CAN, it is suitable for electronics development, embedded systems debugging, and digital circuit troubleshooting.
Product Description
The LHT00SU1 Virtual Oscilloscope and Logic Analyzer is a compact, PC-connected test instrument designed for electronics engineers, technicians, students, and hobbyists. It integrates multiple measurement and signal-analysis functions into a single USB device, providing a practical solution for testing analog waveforms, analyzing digital signals, and troubleshooting communication interfaces.
The oscilloscope function offers a maximum analog bandwidth of 3MHz and a maximum sampling rate of 16MS/s. Its specified analog input voltage range is -10V to +10V, making it suitable for observing low-frequency signals in electronic circuits within the instrument's operating limits.
The integrated 8-channel logic analyzer captures digital signals and supports protocol decoding for I2C, SPI, UART, SMBus, I2S, CAN, 1-Wire, PS/2, parallel communication, and other listed protocols. This makes the LHT00SU1 useful for debugging microcontrollers, development boards, embedded systems, and digital communication interfaces.
Beyond waveform and logic analysis, the device provides additional functions including data logging, voltage measurement, frequency measurement, frequency generation, PWM control, I2C control, and pulse or edge counting, depending on the available software functions.
The LHT00SU1 connects to a computer through a USB 2.0 High-Speed interface. Compatible software allows users to view, capture, and analyze signals on the computer screen, making the device a space-saving alternative for basic electronic testing and development tasks.
Key Features
- Multifunction USB virtual oscilloscope and logic analyzer.
- 3MHz maximum analog bandwidth.
- 16MS/s maximum analog sampling rate.
- Two specified analog input channels, with one sampling channel.
- Analog input voltage range of -10V to +10V.
- Eight digital logic analyzer channels.
- Digital input voltage range of 0V to 5.3V.
- Supports I2C, SPI, UART, CAN, SMBus, I2S, 1-Wire, PS/2, and parallel protocol analysis, subject to software support.
- Data logging and voltage measurement functions.
- Frequency meter and pulse or edge counter functions.
- Frequency generation and PWM control functions.
- I2C controller function.
- USB 2.0 High-Speed computer connection.
- Compact design suitable for laboratories, workshops, education, and embedded development.
Technical Specifications
Product Model: LHT00SU1
Product Type: USB Virtual Oscilloscope and Logic Analyzer
Analog Oscilloscope Specifications
- Analog Input Channels: 2
- Sampling Channels: 1
- Maximum Sampling Rate: 16MS/s
- Maximum Analog Bandwidth: 3MHz
- Analog Input Voltage Range: -10V to +10V
- Specified Sensitivity: 78mV
- Maximum Vertical Resolution: 256 levels
Digital Logic Analyzer Specifications
- Digital Channels: 8
- Digital Input Voltage Range: 0V to 5.3V
- Digital Low-Level Input: Below 0.8V
- Digital High-Level Input: Above 1.4V
- Supported Protocols: I2C, SPI, UART, SMBus, I2S, CAN, parallel, custom protocols, 1-Wire, and PS/2, subject to software support
Connectivity and Additional Functions
- Computer Interface: USB 2.0 High-Speed
- Maximum USB Signaling Rate: 480Mbps
- Data Logger: Supported
- Voltmeter: Dual-channel function listed in product specifications
- Frequency Meter: Supported
- Frequency Generator: Supported
- PWM Controller: Supported
- I2C Controller: Supported
- Pulse and Edge Counter: Supported
- Dimensions: Approximately 104 × 55 × 30mm
- Weight: Approximately 218g.
Applications
- Embedded systems development and debugging.
- Arduino and microcontroller project testing.
- I2C, SPI, and UART communication analysis.
- Digital circuit troubleshooting.
- CAN communication signal analysis.
- Analog waveform observation and measurement.
- PWM signal testing.
- Frequency and pulse measurement.
- Electronics education and laboratory experiments.
- Hardware prototyping and product development.
- Sensor and peripheral interface debugging.
- General-purpose electronic signal analysis.

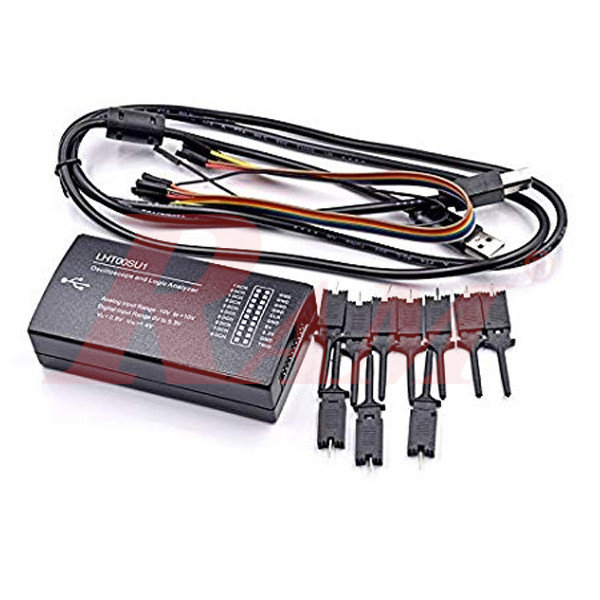

What's in the Box
- 1 × LHT00SU1 Virtual Oscilloscope and Logic Analyzer.
- 1 × 10-pin test clamp cable, approximately 30cm long.
- 10 × Test clips.
- 1 × USB connection cable, approximately 150cm long.
Important Usage Notes
The LHT00SU1 is intended for low-frequency analog measurements and digital signal analysis. Its 3MHz analog bandwidth is not suitable for applications requiring a high-bandwidth oscilloscope.
The analog input range of -10V to +10V is different from the digital input range of 0V to 5.3V. Always observe the specified input limits and grounding requirements when connecting the device to a circuit.
Although CAN protocol decoding is listed as supported, this does not establish that the device includes a dedicated CAN transceiver. A suitable CAN signal connection and compatible decoding software may be required.
The two analog input channels should not be assumed to support simultaneous sampling, because the published specifications identify only one sampling channel.
