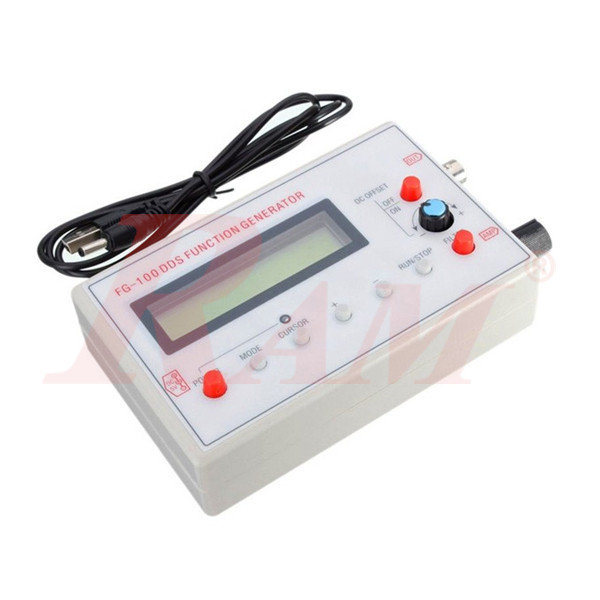

FG-100 DDS Signal Generator


Function Generator

1,750.00 EGP 1750.0 EGP 1,750.00 EGP 2,250.00 EGP

1,750.00 EGP 2,250.00 EGP

Not Available For Sale

This combination does not exist.

 Pick up from RAM Store
 Shipping: 2-3 Business Days

Internal Reference: AVO.FG100


  • Frequency range: Sine Wave 1Hz-500kHz (flat frequency where the output amplitude to 200 kHz, with a further increase in the frequency of the output amplitude, will decrease), other waveforms 1Hz-20kHz (but adjustable frequency caps are not restricted, if the distortion and shaking ask, can further increase the frequency of use).
  • Resolution: 1Hz.
  • Output waveforms: sine, square, triangle wave, sawtooth forward, reverse sawtooth.
  • Sine Wave Distortion: 1kHz or less <1%, 1kHz and above <0.5%.
  • Output amplitude: maximum ± 10V (P-P).
  • Output Impedance: 50 ohms.
  • DC offset: maximum ± 10V, there are off functions.
  • Power Supply: DC3.5-10V. Select DC5V adapter is recommended when using 3.7V lithium battery batteries.
  • Size: 125x80x32mm
  • Package including : 1 x FG-100 DDS Signal Generator
