FNIRSI® DSO-TC3 Oscilloscope Multifunction Electronic Component Tester 3 in 1

http://www.ram-e-shop.com/web/image/product.template/8700/image_1920?unique=e2c5923

Digital Oscilloscope, Transistor Tester & Function Signal Generator
Oscilloscope Prob Included

3,950.00 EGP 3950.0 EGP 3,950.00 EGP 5,500.00 EGP

3,950.00 EGP 5,500.00 EGP

Not Available For Sale

This combination does not exist.

 Pick up from RAM Store
 Shipping: 2-3 Business Days


Internal Reference: AVO.DSO.TC3.FNIRSI

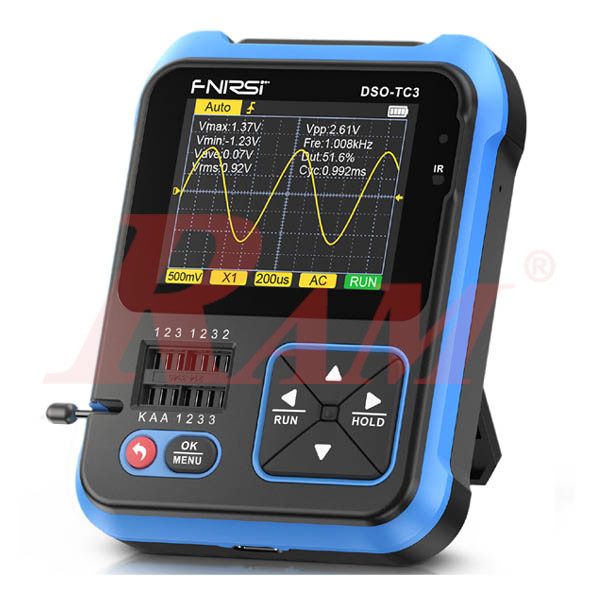

FNIRSI DSO-TC3 combines a digital oscilloscope, electronic component tester, signal generator, continuity test, voltage test, temperature and humidity measurement, infrared decoding and other functions that are skillfully integrated.

It is equipped with a 2.4-inch color TFT display, a built-in rechargeable lithium battery, bringing users stronger and more practical functions with good portability.

Main Features:

  • 3 In 1 Function: This product integrates digital oscilloscope, transistor tester and signal generator functions into one machine.
  • Digital Oscilloscope Function: With the real-time sampling rate of 10MS/s and bandwidth of 500Khz. Support maximum measurement of 400V voltage signal. With complete trigger function (automatic, single, regular). Equipped with an efficient button AUTO.
  • Transistor Tester Function: Automatically identify and measure various transistors, including NPN and PNP triode, N-channel and P-channel metal oxide-semiconductor field effect transistor, JFET, diodes, double diodes, thyristors,as well as resistors, inductors, capacitors, field-effect transistor, etc. passive component. Auto-detect pin definitions.
  • Signal Generator Function: 6 kinds of signal waveforms: sinewave, pulsewave, trianglewave, rampwave, direct current. 1-100KHz adjustable output frequency. 3.3V adjustable output voltage. 0-100% adjustable output duty ratio.
  • Tool Box Function: Automatically analyze specific Protocol infrared code. Other function modes: including circuit continuity test, 0-40V input voltage measurement, PWM output, 0-32V diode measurement, temperature and humidity sensors measurement, etc.
  • 2.4inch Digital TFT Display: TFT color screen, high resolution display with LED backlight, with bright colors and high contrast.
  • High Accuracy: Infrared decoding design, quick response, accurate capture of highly sensitive response signal, fast and accurate measurement with small error.
  • Rich and Powerful Features: One button for automatic adjustment, support for free switch, support intelligent fire preventions.
  • Long Endurance: Built-in 1500mAh high-capacity rechargeable polymer lithium battery, long lasting lifespan, Type-C interface, continuous power supplys without isolation transformer, safer to use.
  • Folding Bracket: Comes with invisible bracket, integrated folding, stable placement, free your hands, does not occupy too much space.
  • Wide Applications: Suitable for mcu debugging, car repairing, home appliance repairing, DIY electronic competition, power-supply debugging, inverter, etc.

Specifications:

  • Display: 2.4 inches TFT color screen
  • Battery: Built-in 1500mah rechargeable lithium battery (included)
  • Charging interface: USB Type-C, +5V
  • Digital Oscilloscope: 10MSa/s
  • Real-time sample rate: 500Khz
  • Analog Bandwidth: 1ΜΩ
  • Input resistance: Alternating Current/Direct Current
  • Coupling method: 400V
  • Test voltage ranges: 10mV-10V
  • Vertical Sensitivity (x1): 1us-10s
  • Horizontal time base ranges:
    • Trigger mode: Auto / Normal / Single
    • Trigger type: Rising edges / Falling edges
    • Waveform Freeze: Yes
    • Automatic measurement: Yes
  • Transistor Tester:
    • Capacitor: 25pF~100mF
    • Resistor: 0.01Ω ~ 50ΜΩ
    • Inductor: 10uH~1000uH
    • Battery: 0.1~4.5V
    • Input voltage: 0~40V
    • DS18B20: 0-85℃
    • DHT1: 0-60°C/5-95%
  • Signal Generator:
    • Sinewave: 1-10KHz/0-3.3V/50%
    • SQW: 1-100KHz/3.3V/50%
    • Pulsewave: 1-100KHz/3.3V/0-100%
    • Trianglewave: 1-10KHz/0-3.3V/50%
    • Ramp: 1-10KHz/0-3.3V/0-100%
    • Direct current: 0-3.3V


    Packing List (Upgraded):

    • 1 * 3in1 Digital Oscilloscope
    • 1 * Adaptor
    • 1 * Probe
    • 1 * High Pressure Probe
    • 3 * Test Hook
    • 1 * Type-C Cable
    • 1 * Manual


    Download

    DATASHEET
