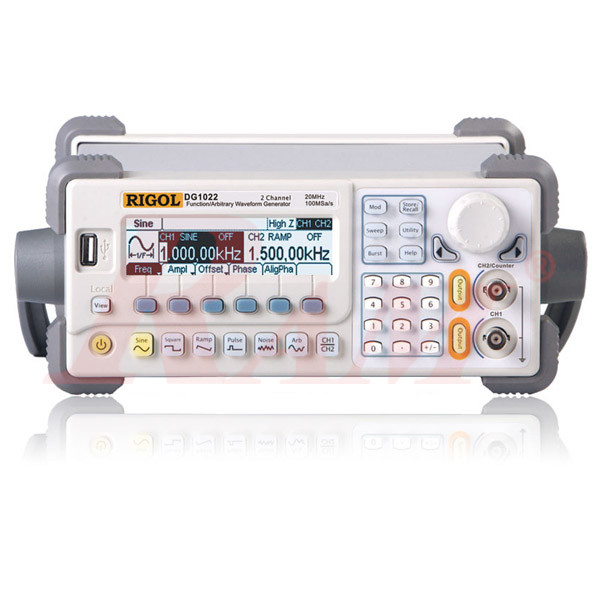

DG1022U RIGOL 25MHz 2 Channel Function/Arbitrary Waveform Generator

https://ram-electronics.odoo.com/web/image/product.template/6837/image_1920?unique=81556e7

26,000.00 EGP 26000.0 EGP 26,000.00 EGP 28,000.00 EGP

26,000.00 EGP 28,000.00 EGP

Not Available For Sale

This combination does not exist.

 Pick up from RAM Store
 Shipping: 2-3 Business Days


Internal Reference: AVO.DG1022U.RIGOL

For More details and technical specifications (Click Here) Introduction:

  • Advanced Direct Digital Synthesis(DDS) technology, 2 output channels, build-in counter, 25MHz maximum output frequency (5 MHz max square wave)
  • Monochrome LCD display
  • 3.5 standard waveforms and DC outputs. 48 preset arbitrary waveforms, 10 groups of 4kpts arbitrary waveforms.
  • Multi modulation functions: AM, FM, PM, PWM, FSK, and linear/logarithm Sweep and Pulse train waveform outputs
  • Connectivity: USB Host, USB Device.

Rigol DG1000 series function/arbitrary waveform generators use Direct Digital Synthesis (DDS) technology. They can generate accurate, stable, clean, low-distortion signals.

Specifications:

  • Model DG1022U (Same as DG1022A)
  • Maximum Output Frequency 25 MHz (5 MHz square wave)
  • Output Channels 2
  • Sample Rate 100 MSa/s
  • Arbitrary Waveform Length:
    • CH1 : 2 pts – 4kpts
    • CH2 : 2 pts – 1kpts
  • Resolution 1 μHz
  • Amplitude:
    • CH1 : 2 mVpp ~ 10 Vpp (50 Ω) ,4 mV ~ 20 Vpp (High Z)
    • CH2 : 2 mVpp ~ 3 Vpp (50 Ω) .4 mV ~ 6 Vp (High Z)
  • Vertical Resolution:
    • CH1 : 14 bits
    • CH2 : 10 bits
  • Standard Interface USB Host & Device
