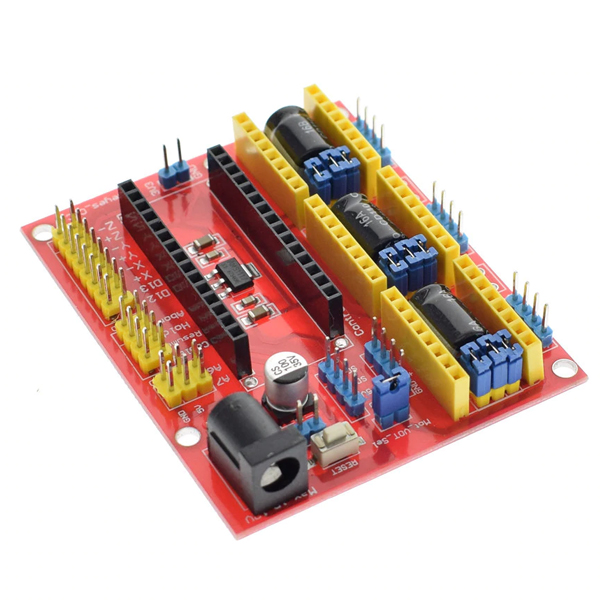

Arduino Shield - Nano CNC Machine V4 Board
Internal Reference:
ARDUINO.SH.CNC.NANO
This board is widely used for driver expansion board of engraving machines. There are a total 3 3-way slots for stepper motor driver modules (Model A4988 or Drv8825 - It sold separately at our store), and it can drive 3-way stepper motors each up to 2A. Each way stepper motor has two I/O ports and it means 6 I/O ports can manage 3 stepper motors. It is very convenient to operate.
SPECIFICATION
- Worked with Aduino Nano
- 3 axis stepper motor driver
- Compatible with micro-drive laser engraving machine, three-axis CNC engraving machine,.
- 2A can be controlled within the two-phase four-wire stepper motor.
- Released the digital IO interface, easy to connect to other modules, such as ENDSTOP.
- Released the I2C interface, you can connect to the LCD I2C or other I2C module.
- Power DC5V interface, 7.5-12V voltage input.
- GRBL compatible
