Overview

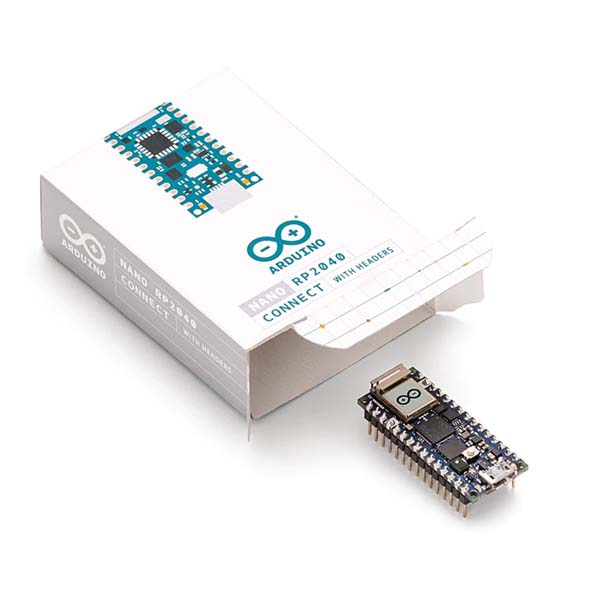

Meet the only connected RP2040 board. It fits the Arduino Nano form factor, making it a small board with BIG features.
The brain of the board is the Raspberry Pi® RP2040 silicon; a dual-core ARM® Cortex®
M0+ running at 133MHz. It has 264KB of SRAM, and the 16MB of flash memory is off-chip to give you extra storage.
But what’s really exciting is the on-board connectivity options. The hugely popular and highly adaptable u-blox NINA-W102 radio module is on there to make this a true IoT champion. This also means you can harness the power of the cloud, with fully Arduino Cloud compatibility.
It’s got on-board, built-in sensors to turn your builds into powerhouse projects, too. Microphone and motion sensing add a depth of possibilities that’s almost impossible to find in a board of this size.
The Arduino Nano RP2040 Connect is the premium choice for RP2040 devices, and the perfect option for upgrading your projects and unlocking the potential of new ones.
Arduino IoT Cloud Compatible
Use your MKR board on Arduino's IoT Cloud, a simple and fast way to ensure secure communication for all of your connected Things.
Get Connected
The u-blox NINA-W102 radio module makes this the only connected RP2040 option. It gives you full WiFi 802.11b/g/n connectivity, along with Bluetooth® and Bluetooth® Low Energy v4.2
Sensor Overload
Packed onto this tiny board are a couple of very useful sensors. A built-in mic is there for sound activation, audio control and even AI voice recognition. The six-axis smart IMU with AI capabilities tells the board which way it’s moving, and adds fall sensing and double-tap activation.
Hard Working Hardware
It might be a small board, but the Nano RP2040 Connect packs a hardware punch. It matches the established Arduino Nano form factor, making it the perfect upgrade for projects of all sizes.
More Memory
With 16MB flash memory that’s external to the microprocessor, there’s bags of room for your code and storage needs.
Power Pins
The programmable I/O pins have functions that bigger boards only dream of; 22 digital, 20 with PWM and 8 analog.
Raspberry Pi® Pico Compatible
Smart software options for a very smart device. It has full support for the entire RP2040 software ecosystem.
Arduino Lover
Supports the Arduino programming language, the IDE 2.0 and all those awesome libraries.
Python Power
Full support for MicroPython. Get a Nano RP2040 Connect, and it comes with a FREE OpenMV license for machine vision projects.
Arduino Cloud Ready
Program and operate the Nano RP2040 Connect directly from your web browser. Fully compatible from day one. Upload your sketches over-the-air with instant remote control from the free Arduino IoT Remote smartphone app.
Tech specs
- Microcontroller: Raspberry Pi RP2040
- USB connector: Micro USB
- Built-in LED pin: 13
- Digital I/O Pins: 20
- Analog Input Pins: 8
- PWM pins: 20 (Except A6, A7)
- External interrupts: 20 (Except A6, A7)
- Wi-Fi: Nina W102 uBlox module
- Bluetooth: Nina W102 uBlox module
- Secure element: ATECC608A-MAHDA-T Crypto IC
- IMU: LSM6DSOXTR: (6-axis)
- Microphone: MP34DT05
- UART: Yes
- I2C: Yes
- SPI: Yes
- Circuit operating voltage: 3.3V
- Input Voltage (VIN): 5-21V
- DC Current per I/O pin: 4 mA
- Clock speed Processor: 133 MHz
- Memory:
- AT25SF128A-MHB-T: 16MB Flash IC
- Nina W102 uBlox module: 448 KB ROM, 520KB SRAM, 16MB Flash
- Weight: 6 g
- Width: 18 mm
- Length: 45 mm
