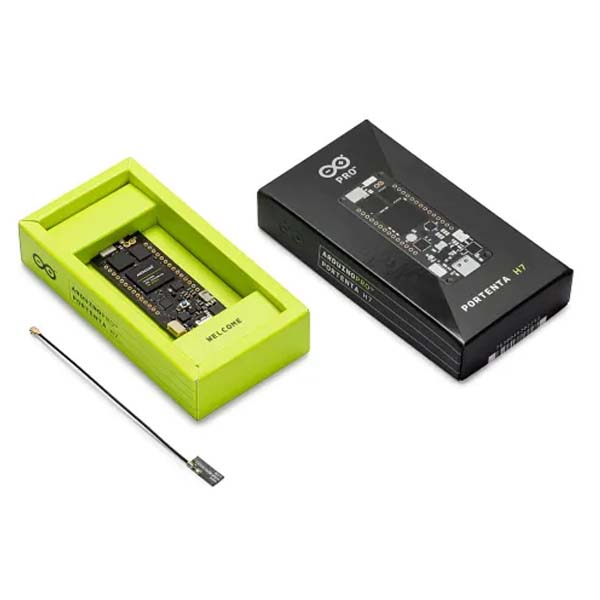

Arduino Portenta H7

https://www.ram-e-shop.com/web/image/product.template/8436/image_1920?unique=9b97f50

ABX00042

2,850.00 EGP 2850.0 EGP 2,850.00 EGP

2,850.00 EGP

Not Available For Sale

This combination does not exist.

 Pick up from RAM Store
 Shipping: 2-3 Business Days


Internal Reference: ARDUINO.ORG.PORTENTA.H7

This Board is 100% original & Designed & Assembled in ITALY

Overview

Portenta H7 allows you to build your next smart project. Ever wanted an automated house? Or a smart garden? Well, now it’s easy with the Arduino IoT Cloud compatible boards. It means: you can connect devices, visualize data, control and share your projects from anywhere in the world. Whether you’re a beginner or a pro, we have a wide range of plans to make sure you get the features you need.

Portenta H7 simultaneously runs high level code along with real time tasks. The design includes two processors that can run tasks in parallel. For example, is possible to execute Arduino compiled code along with MicroPython one, and have both cores to communicate with one another. The Portenta functionality is two-fold, it can either be running like any other embedded microcontroller board, or as the main processor of an embedded computer.

Portenta can easily run processes created with TensorFlow™ Lite, you could have one of the cores computing a computer vision algorithm on the fly, while the other could be making low-level operations like controlling a motor, or acting as a user interface.

Use Portenta when performance is key, among other cases, we envision it to be part of:

  • High-end industrial machinery
  • Laboratory equipment
  • Computer vision
  • PLCs
  • Industry-ready user interfaces
  • Robotics controller
  • Mission-critical devices
  • Dedicated stationary computer
  • High-speed booting computation (ms)

Two Parallel Cores

H7's main processor is the dual core STM32H747 including a Cortex® M7 running at 480 MHz and a Cortex® M4 running at 240 MHz. The two cores communicate via a Remote Procedure Call mechanism that allows calling functions on the other processor seamlessly. Both processors share all the in-chip peripherals and can run:

  • Arduino sketches on top of the Arm® Mbed™ OS
  • Native Mbed™ applications
  • MicroPython / JavaScript via an interpreter
  • TensorFlow™ Lite

Graphics Accelerator

Probably one of the most exciting features of the Portenta H7 is the possibility of connecting an external monitor to build your own dedicated embedded computer with a user interface. This is possible thanks to the STM32H747 processor's on-chip GPU, the Chrom-ART Accelerator™. Besides the GPU, the chip includes a dedicated JPEG encoder and decoder.

Multiple options in one board

Order the default Arduino Portenta H7 (codename H7-15EUNWAD) that comes with:

  • STM32H747 dual-core processor with graphics engine
  • 8MB SDRAM
  • 16MB NOR Flash
  • 10/100 Ethernet Phy
  • USB HS
  • NXP SE050C2 Crypto
  • WiFi/BT Module
  • External Antenna
  • DisplayPort over USB-C

Tech specs

The Arduino Portenta H7 is based on the STM32H747 microcontroller, XI series.

MicrocontrollerSTM32H747XI dual Cortex®-M7+M4 32bit low power Arm® MCU (datasheet)
Radio moduleMurata 1DX dual WiFi 802.11b/g/n 65 Mbps and Bluetooth® (Bluetooth® Low Energy. 5 via Cordio stack, Bluetooth® Low Energy 4.2 via Arduino Stack) (datasheet)
Secure Element (default)NXP SE0502 (datasheet)
Board Power Supply (USB/VIN)5V
Supported BatteryLi-Po Single Cell, 3.7V, 700mAh Minimum (integrated charger)
Circuit Operating Voltage3.3V
Display ConnectorMIPI DSI host & MIPI D-PHY to interface with low-pin count large display
GPUChrom-ART graphical hardware Accelerator™
Timers22x timers and watchdogs
UART4x ports (2 with flow control)
Ethernet PHY10 / 100 Mbps (through expansion port only)
SD CardInterface for SD Card connector (through expansion port only)
Operational Temperature-40 °C to +85 °C
MKR HeadersUse any of the existing industrial MKR shields on it
High-density ConnectorsTwo 80 pin connectors will expose all of the board's peripherals to other devices
Camera Interface8-bit, up to 80 MHz
ADC3× ADCs with 16-bit max. resolution (up to 36 channels, up to 3.6 MSPS)
DAC2× 12-bit DAC (1 MHz) available, only one is accessible by the user through the external A6 pin
USB-CHost / Device, DisplayPort out, High / Full Speed, Power delivery
