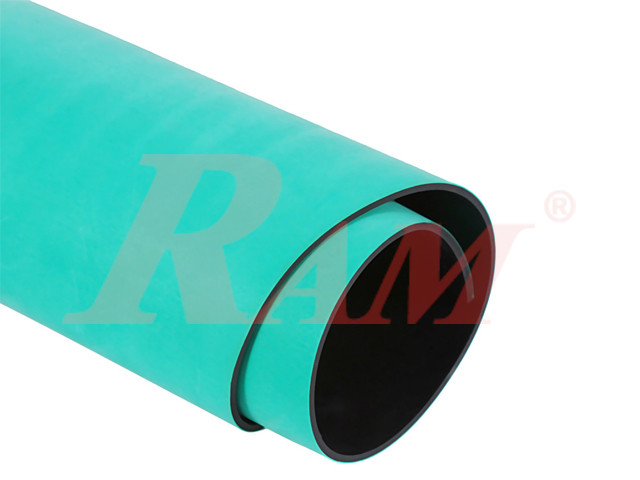

Anti-Static Table Mat - ESD Roll 100x60 Cm

PVC Anti-Static ESD Bench Mat (Dual-Layer, RoHS 2.0 Compliant)

Short Description

The PVC Anti-Static Table Mat is a professional-grade electrostatic discharge (ESD) control surface designed for electronics manufacturing, testing, and repair environments. Featuring a dual-layer construction, it provides a static-dissipative top layer and a highly conductive bottom layer to safely ground sensitive components. It is fully certified to RoHS 2.0 environmental standards.

Detailed Description

Electrostatic discharge is one of the leading causes of latent damage in sensitive semiconductor components. This dual-layer PVC Anti-Static Table Mat is engineered to mitigate static generation and provide a controlled path to ground.

The mat utilizes a standard industry dual-layer design. The top layer is static-dissipative, which slows the discharge of static electricity to prevent damaging arcs. Laboratory testing confirms the front point-to-point resistance remains safely under the standard 10⁹ Ω threshold, specifically testing between 5.163 × 10⁷ Ω and 5.216 × 10⁷ Ω. The bottom layer is highly conductive, designed to quickly shunt the electrical charge to your grounding system, measuring reliably at ~2.66 × 10⁴ Ω (well below the 10⁵ Ω maximum requirement).

Furthermore, this mat meets strict environmental compliance. It has been independently tested and verified to comply with the EU RoHS Directive (2011/65/EU) and its amending Directive (EU) 2015/863. It is confirmed free from hazardous heavy metals (Lead, Cadmium, Mercury, Hexavalent Chromium) and restricted brominated flame retardants and phthalates (PBBs, PBDEs, DEHP, BBP, DBP, DIBP).

Key Features

• Dual-Layer ESD Protection: Combines a static-dissipative top layer with a conductive bottom layer for optimal static neutralization.
• Verified Dissipative Top: Front surface resistance measures reliably in the 10⁷ Ω range, ensuring safe, gradual static dissipation without sparking.
• Highly Conductive Backing: Bottom surface resistance measures in the 10⁴ Ω range, ensuring a rapid path to ground.
• RoHS 2.0 Certified: Independently tested and passed strict European standards for hazardous substances, making it safe for operators and the environment.
• Durable PVC Material: Manufactured from polyvinyl chloride (PVC) for reliable everyday workbench performance.

Technical Specifications

Applications

• Electronic assembly and soldering workstations.
• Computer and mobile device repair benches.
• Cleanrooms and laboratory testing environments.
• Server building and hardware modification stations.
• Manufacturing lines handling sensitive ICs, MOSFETs, and CMOS components.

Compatibility

• Fully compatible with standard ESD grounding cords and snaps (requires punching/installation if not pre-installed).
• Compatible with continuous ESD workstation monitors.
• Safe for use with standard electronic components, PCBs, and testing equipment (such as insulation resistance meters).

Package Contents

• Our ESD mat is available in rolls of 10 meters, so we can easily cut it to your specifications. If you need a 3-meter piece, we will deliver it as a single cut measuring 300x60 cm.


Important Notes

• Grounding Required: An anti-static mat does not eliminate static on its own. It must be physically connected to earth ground using a compatible ESD grounding cable to function correctly.
• Heat Resistance: As a PVC mat, it is suitable for general electronics work. However, extreme heat from direct contact with soldering iron tips may melt or scar the PVC surface. For continuous high-temperature soldering contact, rubber-based mats are generally recommended over PVC.
• Cleaning: Only use approved ESD mat cleaners. Standard household detergents or alcohol can strip the anti-static properties and degrade the PVC material.

FAQ Q: How do I know the mat is actually dissipating static? A: Independent laboratory testing using an RK2683AN Insulation Resistance Meter confirms the top layer provides a resistance of ~5.2 × 10⁷ Ω, while the bottom conductive layer reads ~2.6 × 10⁴ Ω. This satisfies standard ESD requirements for safe static dissipation.

Q: Is this mat safe to use in environments with strict chemical regulations? A: Yes, it has passed rigorous testing for RoHS 2.0 (Directive 2011/65/EU and 2015/863) and contains no detectable levels of restricted heavy metals, flame retardants, or phthalates.

Q: Which side goes up? A: The static-dissipative side (typically green or blue, yielding resistance > 10⁷ Ω) should face up to safely handle your components. The highly conductive side (typically black, yielding resistance < 10⁵ Ω) should face down against the desk.
