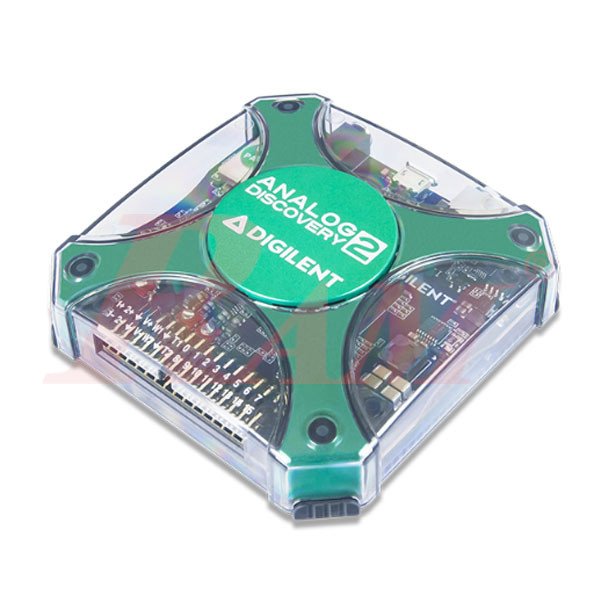

Digilent® Analog Discovery 2

https://www.ram-e-shop.com/web/image/product.template/9507/image_1920?unique=573f75d

100 MS/s USB Oscilloscope, Waveform Generator, Spectrum Analyzer, and Variable Power Supply

30,000.00 EGP 30000.0 EGP 30,000.00 EGP

30,000.00 EGP

Not Available For Sale

This combination does not exist.

Contact Us

 Pick up from RAM Store
 Shipping: 2-3 Business Days

Internal Reference: ANALOG.DISCOVERY.2

Overview

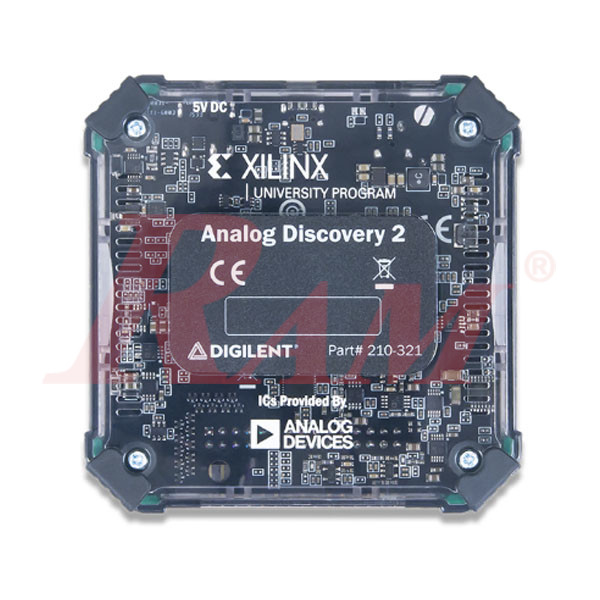

The Analog Discovery 2 is a versatile, USB-powered test and measurement device developed in collaboration with Analog Devices and supported by the Xilinx University Program. It combines multiple instruments into a compact form factor, making it ideal for engineers, students, and hobbyists working with analog and digital circuits. The device is driven by the free WaveForms software, compatible with Windows, macOS, and Linux.

Key Features

  • Oscilloscope: 2 channels, differential, 14-bit resolution, ±25V input range, 100 MS/s sampling rate, 30+ MHz bandwidth (with BNC Adapter).
  • Arbitrary Waveform Generator: 2 channels, ±5V output range, 14-bit resolution, 100 MS/s sampling rate, 12+ MHz bandwidth.
  • Logic Analyzer: 16 channels, 3.3V CMOS (1.8V and 5V tolerant), 100 MS/s.
  • Pattern Generator: 16 channels, 3.3V CMOS, 100 MS/s.
  • Digital I/O: 16 channels with virtual instruments like buttons, switches, LEDs, and displays.
  • Voltmeter: 2 channels for AC/DC measurements up to ±25V.
  • Power Supplies: Dual programmable supplies (0.5V to 5V and -0.5V to -5V). Output current and power depend on the power source:
    • USB-powered: 250 mW per supply (500 mW total).
    • External supply: up to 700 mA or 2.1 W per supply.
  • Additional Instruments via WaveForms:
    • Spectrum Analyzer.
    • Network Analyzer (1 Hz to 10 MHz).
    • Impedance Analyzer.
    • Protocol Analyzer (SPI, I²C, UART, CAN, AVR).
    • Data Logger.
    • Curve Tracer.

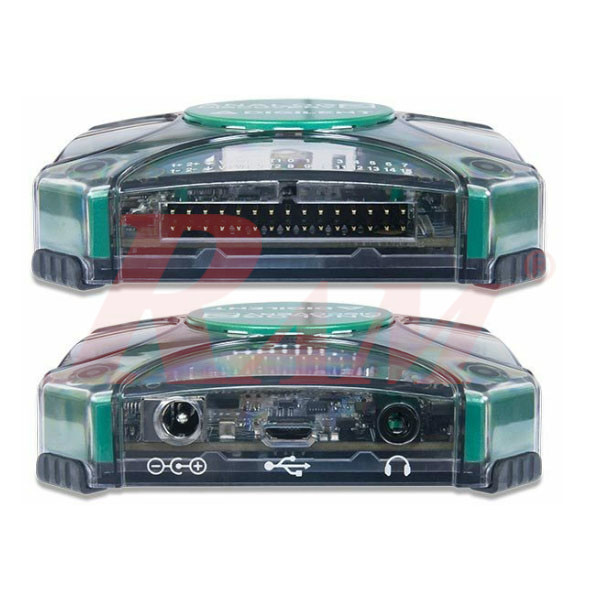

Physical Specifications

  • Dimensions: 3.23" x 3.25" x 0.875" (82 x 82.5 x 22 mm).

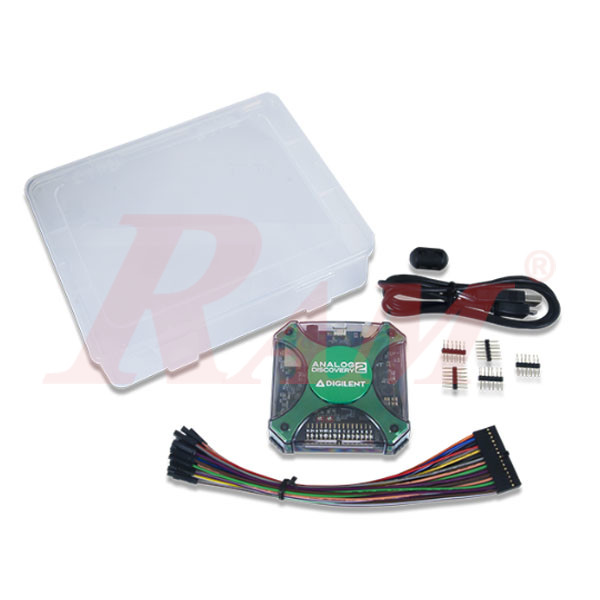

  • Enclosure: Durable project box included, measuring 7" x 5.75" x 1.5" (178 x 146 x 38 mm), accommodating the device and accessories.

Software Compatibility

  • WaveForms Software: Compatible with Windows, macOS, and Linux. Enables configuration as various instruments, including:
    • Oscilloscope.
    • Waveform Generator.
    • Logic Analyzer.
    • Pattern Generator.
    • Voltmeter.
    • Data Logger.
    • Spectrum Analyzer.
    • Network Analyzer.
    • Impedance Analyzer.
    • Protocol Analyzer.
    • Curve Tracer.
