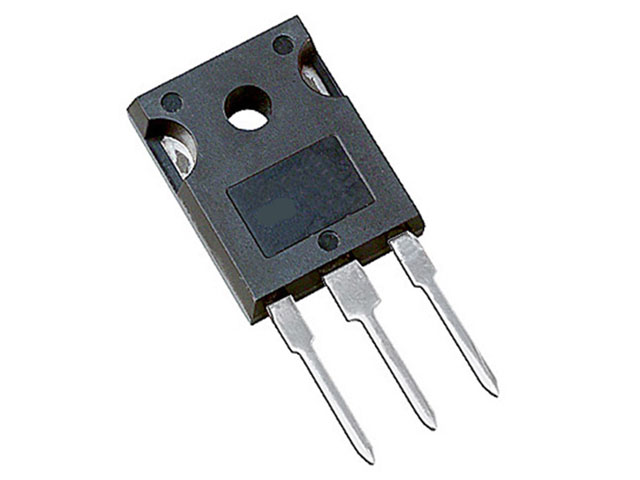

20N60C3 N-Channel Power MOSFET

20A, 650V N-Channel Power MOSFET
TO-247 package

30.00 EGP 30.0 EGP 30.00 EGP

30.00 EGP

This combination does not exist.

Pick up from RAM Store
Shipping: 2-3 Business Days

Internal Reference: 20N60C3.BIG.TO247

The component in your photo is 20N60C3, which is an N-Channel Power MOSFET from the Infineon CoolMOS™ C3 family (originally manufactured by Infineon Technologies). The logo on the package is Infineon's logo.

Parameter	Value
Type	N-Channel MOSFET
Technology	CoolMOS™ C3
VDS	650V
ID @ 25°C	20.7A
RDS(on)	0.19Ω max
Package	PG-TO247-3
VGS(max)	±20V
Tj(max)	150°C

Pinout (Front View)

Looking at the transistor exactly as in your photo:


       Front View
   __________________
  |                  |
  |    20N60C3       |
  |__________________|
      |    |    |
      1    2    3

1 = Gate
2 = Drain
3 = Source

Metal Tab = Drain

Typical Applications

SMPS Power Supplies
UPS Systems
PFC Circuits
Inverters
Industrial Power Supplies
High-voltage Switching Applications

Download:

Datasheet
