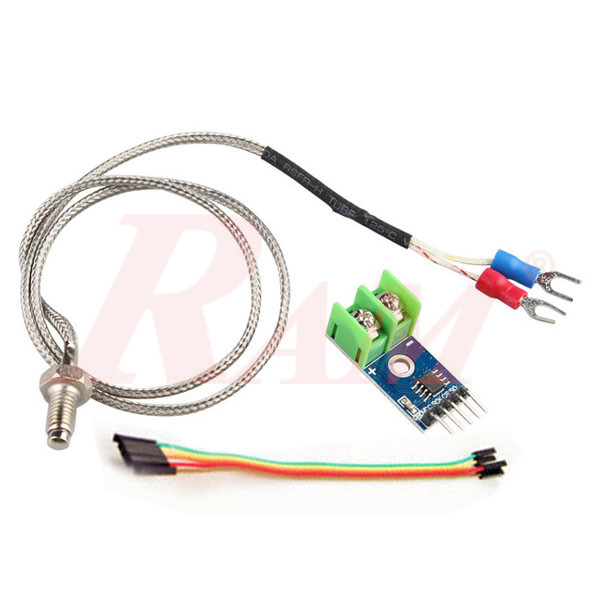

Thermocouple K Type Temperature Sensor + MAX6675 Module
Internal Reference:
KIT.THERMO.MAX6675
Thermocouple Type K - with mV o/p - Screw Size: M6
Description:
- Working voltage: DC5V
- Operating Current: 50mA
- The temperature measuring range (K-type Thermocouple): up to 600 °C
- The temperature measurement accuracy: ± 1.5 °C
- The temperature resolution: 0.25 °C
- The output mode: SPI digital signal
- With a fixed mounting holes for easy installation.
- Storage temperature: -50 ~ 150 °C
Package List:
- 1x MAX6675 module
- 1x K-type thermocouple
- 1x DuPont line
