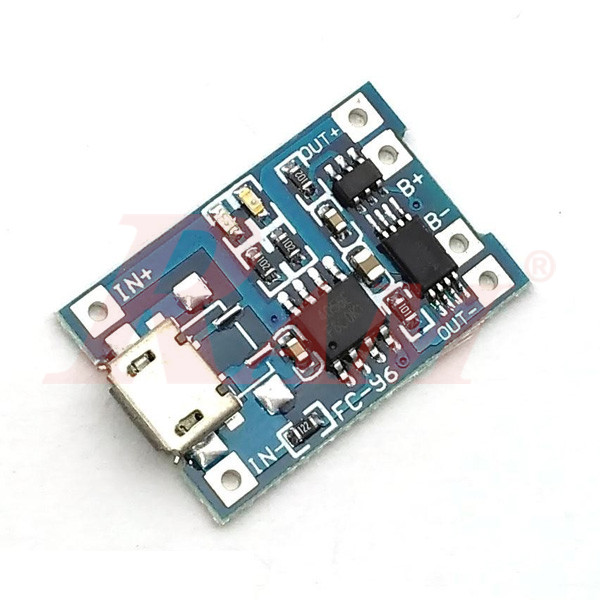

TP4056 USB Micro Lithium Battery Charger Module 1A With Battery Protection

30.00 EGP 30.0 EGP 30.00 EGP

30.00 EGP

Not Available For Sale

This combination does not exist.

 Pick up from RAM Store
 Shipping: 2-3 Business Days


5V 1A Type Micro USB 18650 Lithium Battery Charging Board Charger Module + Protection Dual Functions TP4056

  • This is a miniature battery charger based on the TP4056 integrated circuit. It is ideal for adding an embedded battery charger to your new project.
  • Charge Li-Ion batteries from onboard Type Micro USB connector from USB or external +5V source.
  • With a Micro USB onboard connector, you can directly connect to a computer USB port for battery charging. If USB is not available you can use an external source voltage at IN+/IN- pads great for DIY projects


  • Chipset: TP4056
  • Input voltage: 4.5V~5.5V
  • Fully charged voltage: 4.2V
  • Charging current: 1A adjustable (Set originally to 1A)
  • Working temperature: -10'C~85'C
  • Charging method: Linear charging 1%
  • Charging precision: 1.5%
  • Charging indicator: Red light charging, Green light fully charged
  • Interface: Micro USB
  • Size: 25 x 19 x 10mm.

Safety Notes:

  1. The ampere meter can only be connected to the 5v input end of the module.
  2. The charging current should be 37% of the battery capacity. If you charge to the battery of 1000mAH, a current of 400mA is enough.
  3. The connection wire should not be too thick.
  4. Make sure the connection points are well-soldered.
  5. If the input voltage is too high, like 5.2v, the current will be less than 1000mA, which is normal. It is a protection function, that auto-subtracts the charging current to avoid burn damage to the chip.
  6. NO Reversal polarity.
