NX8048T070 HMI LCD 7" - Without Frame

Overview

Nextion offers an integrated Human Machine Interface (HMI) solution that facilitates interaction and visualization between users and various processes, machines, applications, or devices. Primarily utilized in the Internet of Things (IoT) and consumer electronics sectors, Nextion serves as an ideal alternative to conventional LCDs and LED Nixie tubes. The system comprises both hardware components (a range of TFT display boards) and software (the Nextion editor).

Display:

• Resolution: 800 × 480 pixels (can be set to 480 × 800)
• Color: 65K (16-bit RGB)
• Touch: Resistive
• Touch Lifespan: >1 million touches
• Brightness: 250 nit (no touch), 230 nit (resistive), adjustable 0–100%
• Backlight: LED, >30,000 hours

Power:

• Voltage: 4.75 V to 7 V (5 V recommended)
• Current: 510 mA at 100% brightness, 15 mA sleep
• Power Supply: 5 V / 2 A DC recommended

Interface & Storage:

• Serial: TTL (4-pin, 2.54 mm)
• Baud Rate: 2400 to 115200 bps (default 9600)
• USB: Not available
• SD Card: Supports up to 32 GB (FAT32)
• Flash: 16 MB
• RAM: 3584 bytes

Software:

• Nextion Editor (free)
• Drag & drop GUI, ready-made components
• Compatible with Arduino, Raspberry Pi, ESP8266, ESP32

Physical Dimensions:

• Size: 181 mm (L) × 108 mm (W)
• Thickness: 7.3 mm (no touch), 9 mm (resistive touch)
• Active Area: 164.9 mm × 100 mm
• Visual Area: 154.08 mm × 85.92 mm
• Weight: 268 g (resistive touch)

Environmental:

• Operating Temp: -20°C to 70°C
• Storage Temp: -30°C to 85°C
• Humidity: 10% to 90% RH (non-condensing)

Included in Package:

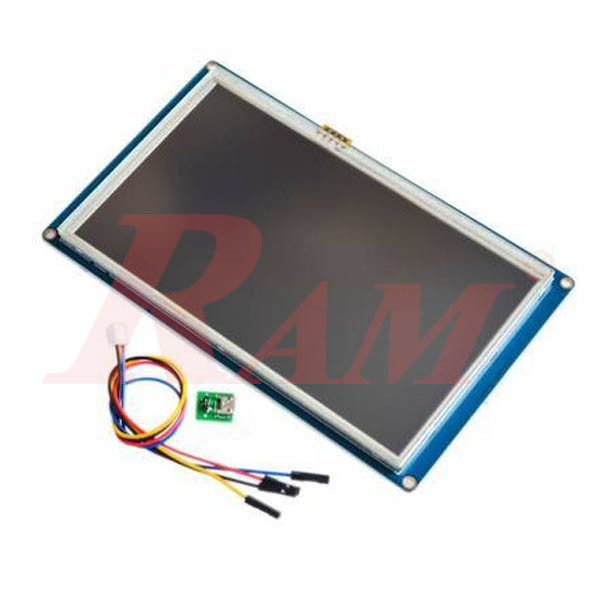

• 1 × 7.0" Nextion HMI Display Module
• 1 × 4-pin Connecting Wire
• 1 × Power Supply Test Board

Applications:

• Industrial machines
• Home automation
• 3D printers
• IoT interfaces
• DIY electronics

Download

• Datasheet
