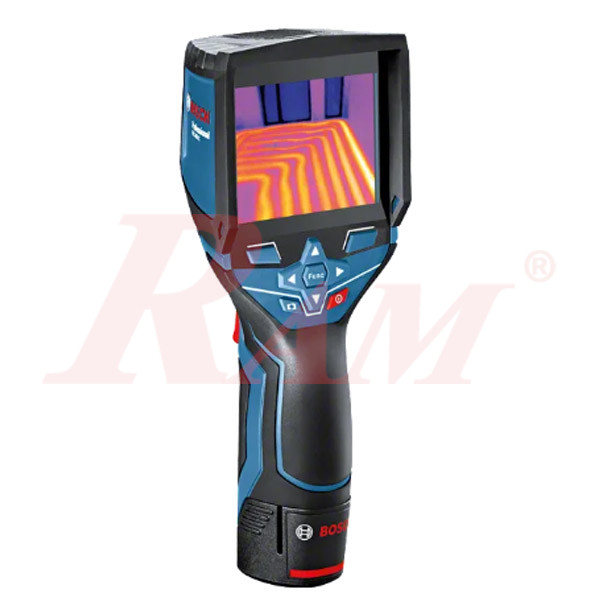

BOSCH Thermo Camera PRO GTC 400 C Professional (SKU# 0 601 083 101)

Bosch PRO GTC 400 C Thermal Camera Professional (SKU: 0 601 083 101 | Order No. 0.601.083.101)

Product Overview

The Bosch PRO GTC 400 C Thermal Camera is a smart and rugged thermal imaging solution that measures and visualizes temperature differences in seconds. It enables fast diagnostics and easy documentation thanks to Wi-Fi connectivity and the Bosch ThermalOn app for quick image transfer and reporting.

With intelligent picture-in-picture technology, thermal and real images are combined for precise localization of heat sources. The flexible dual power system allows operation with a 12V Bosch Li-Ion battery or standard AA batteries, making it ideal for demanding jobsite conditions.

Key Features

• Fast visualization of temperature differences

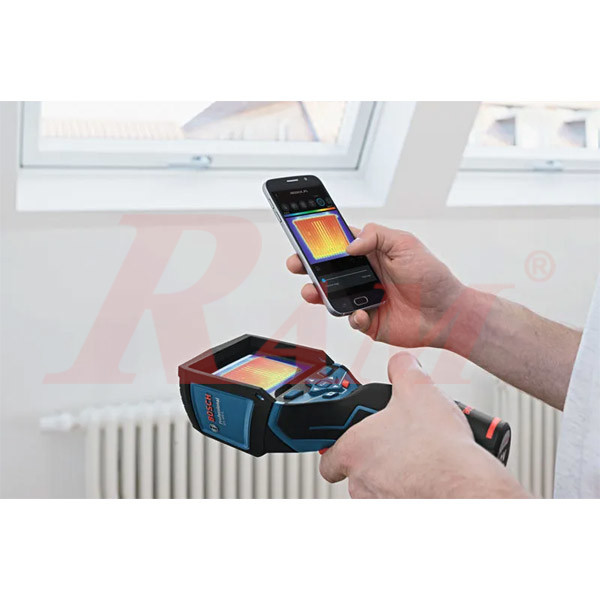

• ThermalOn app for quick data transfer and documentation
• Wi-Fi & MicroUSB connectivity
• Picture-in-picture overlay (thermal + real image)
• High-resolution thermal sensor (19,200 measuring points)
• Dual power system: 12V Li-Ion battery or AA batteries
• Internal memory for image storage
• Rugged design with IP53 dust/splash protection
• Compact and easy-to-use professional tool

Functions

• Thermal imaging
• Real image + thermal overlay
• Photo capture and storage
• Temperature min/max indication
• Wireless data sharing via app
• USB export of images

Technical Specifications

• Brand: Bosch Professional
• Model: PRO GTC 400 C
• Product Type: Thermal Camera / Thermo Camera
• Order Number / SKU: 0 601 083 101
• Battery Voltage: 12.0 V
• Measurement Range: -10 °C to +400 °C
• Accuracy (IR): ±3.0 °C
• Thermal Sensitivity (NETD): < 50 mK
• IR Sensor Resolution: 160 × 120 pixels
• Number of Measuring Points: 19,200
• Temperature Resolution: 0.1 °C
• Field of View (FOV): 53° × 43°
• Display Size: 3.5" color screen
• Focus Distance (min): 0.3 m
• Data Transfer: Wi-Fi, MicroUSB
• Memory: Internal
• Frame Buffer: 500 images
• Image Format: .jpg
• Power Supply Options:
• • 4 × 1.5V AA batteries
• • 12V Li-Ion battery (GBA 12V / 10.8V compatible)
• Dust & Splash Protection: IP53
• Operating Temperature: -10 to 45 °C
• Storage Temperature: -20 to 70 °C
• Net Weight: 0.357 kg
• Weight (approx.): 0.54 kg

Product Highlights

• Measures and displays temperature differences instantly
• Easy reporting with Bosch ThermalOn mobile app
• Picture-in-picture ensures clear fault localization
• Dual power system for flexible jobsite use
• Ideal for professional diagnostics and documentation

Applications

Ideal for:

• Electrical inspections and overheated component detection
• Insulation and heat-loss checks

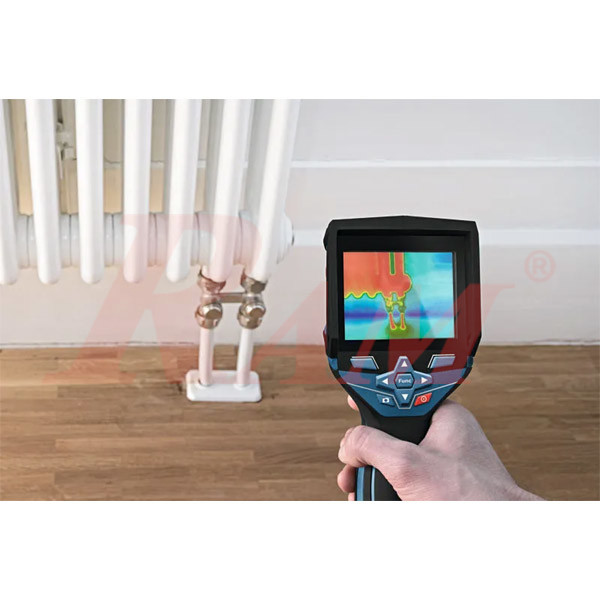

• Heating and HVAC systems troubleshooting
• Heat flow analysis
• Preventive maintenance
• Finding hidden faults behind walls

Additional Information

Suitable for professional technical use only. Not intended for medical applications.

Packaging

1. Thermal camera
2. Pouch/case
3. Batteries
4. USB cable, and documentation
