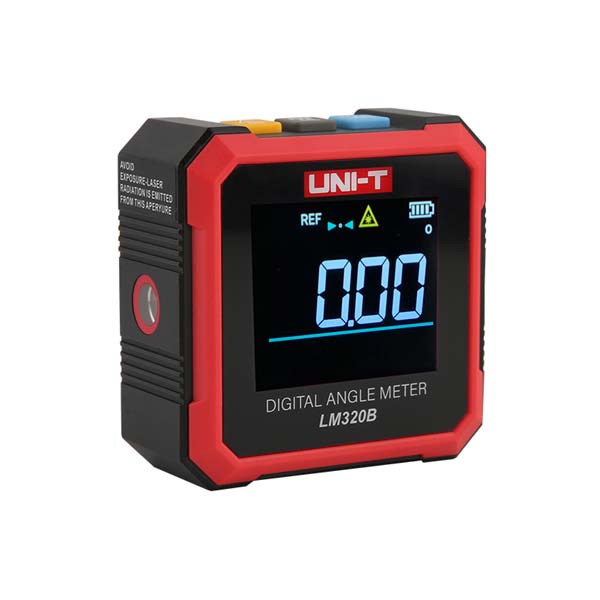

LM320 series digital angle meters are used to measure the precise angle in a variety of applications, designed with 2/4 sided magnetic bottom, and two-side laser design (LM320B) makes the measurement more accurate and convenient! This series can be used in manufacturing, home decoration/DIY, and other fields requiring accurate angle measurements. Features
- Relative/absolute measurement
- 360°comprehensive measurement
- Data hold
- Portable and lightweight
- Unique laser design
| Specifications | LM320B |
| Certificate | RoHS |
| Measurement range | 4×90° |
| Accuracy | ± 0.2° |
| Resolution | 0.01° |
| Display | EBTN |
| Laser indication | Two-side lasers |
| Battery Capacity | 3.7V lithium battery（300mah) |
| Charging | Type C Charging Interface |
| Working Time | 2h |
| Magnet base | Four-side magnets |
| Auto power off | Yes |
| Relative/Absolute Measurement | Yes |
| Low battery indication | Yes |
| General Characteristics | |
| Power | 3.7V lithium battery（300mah) |
| Product Color | Black and red |
| Product net weight | 106g |
| Product size | 60×60×30mm |
| Standard accessories | Type-C male to female extension cable, USB adapter |
| Standard individual packing | Gift box, English manual |
