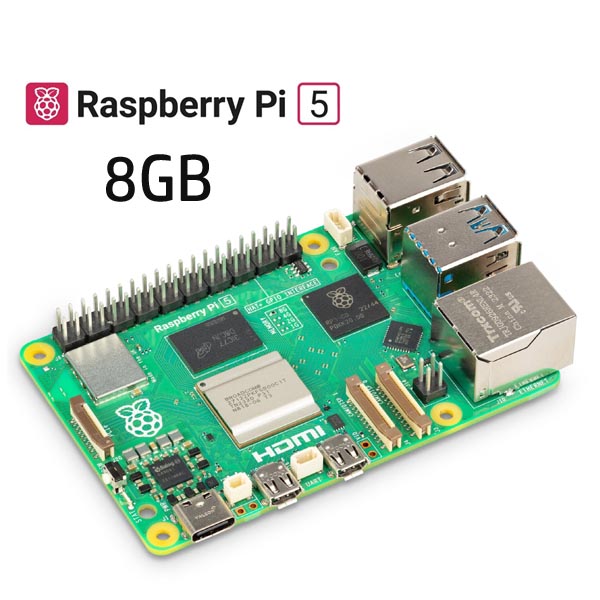

The Raspberry Pi 5 8GB board is the higher-memory variant of the latest Raspberry Pi 5 single-board computer, built around the Broadcom BCM2712 quad-core Cortex-A76 processor running at 2.4GHz. With 8GB of LPDDR4X memory, this raspberry pi 5 8gb board handles heavier multitasking, larger containers, and memory-hungry projects more comfortably than the 4GB variant — from dual 4K desktop use to always-on servers and edge-AI workloads. It's one of RAM Electronics' Raspberry Pi boards, alongside the 4GB and 16GB memory options for different budgets and workloads.

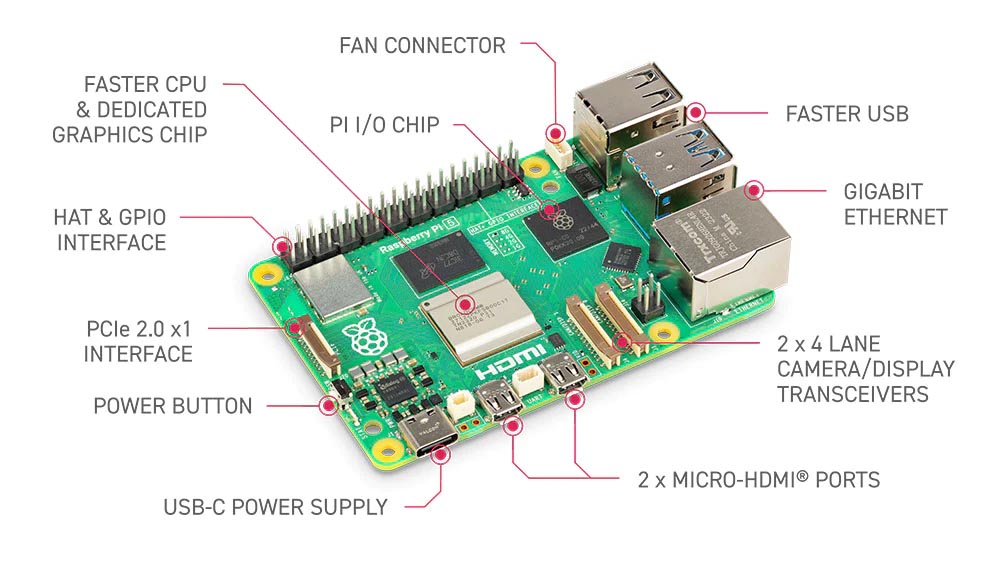

Specification
- Broadcom BCM2712 2.4GHz quad-core 64-bit Arm Cortex-A76 CPU, with cryptography extensions, 512KB per-core L2 caches and a 2MB shared L3 cache
- VideoCore VII GPU, supporting OpenGL ES 3.1, Vulkan 1.2
- Dual 4Kp60 HDMI® display output with HDR support
- 4Kp60 HEVC decoder
- LPDDR4X-4267 SDRAM (8GB)
- Dual-band 802.11ac Wi-Fi®
- Bluetooth 5.0 / Bluetooth Low Energy (BLE)
- microSD card slot, with support for high-speed SDR104 mode
- 2 × USB 3.0 ports, supporting simultaneous 5Gbps operation
- 2 × USB 2.0 ports
- Gigabit Ethernet, with PoE+ support (requires separate PoE+ HAT)
- 2 × 4-lane MIPI camera/display transceivers
- PCIe 2.0 x1 interface for fast peripherals (requires separate M.2 HAT or other adapter)
- 5V/5A DC power via USB-C, with Power Delivery support
- Raspberry Pi standard 40-pin header
- Real-time clock (RTC), powered from external battery
- Power button
Why Choose the 8GB Model?
- More headroom than the Raspberry Pi 5 4GB for multitasking, containers (Docker), and browser-heavy desktop use.
- A practical step up for local AI/edge workloads, media servers, and always-on home-lab projects that outgrow 4GB.
- Need even more memory for demanding workloads? See the Raspberry Pi 5 16GB for power-user and professional applications.
- Building on a budget or for lighter projects (Arduino-style prototyping, learning)? The Raspberry Pi 5 4GB covers most everyday use cases.
Common Uses for the Raspberry Pi 5 8GB
- Desktop replacement with dual 4K monitor output for everyday computing and browsing.
- Home automation hubs, NAS/media servers, and network appliances running 24/7.
- Robotics, computer-vision, and edge-AI projects using the MIPI camera ports and PCIe interface.
- Retro-gaming emulation and general maker/IoT projects that benefit from extra RAM headroom.
Frequently Asked Questions
What's the difference between the Raspberry Pi 5 4GB and 8GB?
Both share the same BCM2712 Cortex-A76 CPU and I/O; the 8GB board simply doubles the RAM, which mainly helps with multitasking, containers, and heavier applications rather than raw CPU speed.
What power supply does the Raspberry Pi 5 8GB need?
It requires a 5V/5A USB-C power supply with Power Delivery support. Older Raspberry Pi 4 chargers will run the board but may limit power available to USB accessories.
Is 8GB enough for desktop use and light development?
Yes — 8GB comfortably covers everyday desktop use, browser tabs, and most single-project development work on Raspberry Pi OS.
Does this board include storage?
No — it boots from a microSD card (SDR104 high-speed mode supported) or from external NVMe storage via the PCIe 2.0 x1 interface with a separate M.2 HAT.
Can I add a camera or display to this board?
Yes — it has two 4-lane MIPI camera/display transceivers, so you can connect a Raspberry Pi camera module and a compatible display at the same time.
Ready to build your next project on more memory headroom? Shop the Raspberry Pi 5 8GB board at RAM Electronics, and check out the 4GB and 16GB variants if you need a different memory size for the new school/study season.
