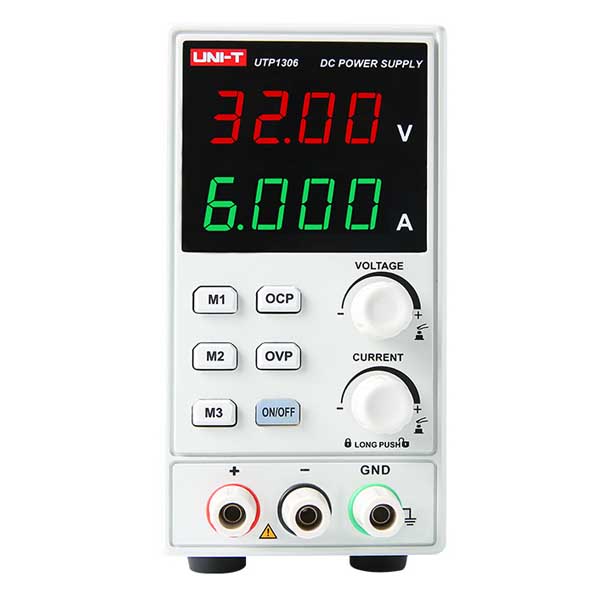

The UTP1000 Series power supply is an economical switching type DC-regulated power supply with a single output. It has a pure output, excellent performance indicators, and can meet diverse testing needs.
Used in product debugging and maintenance, quality control and testing, production automation testing, teaching experiments, etc.
- TYPE: Programmable Switching DC Power Supplies
- CHANNELS: 1
- TOTAL POWER: 192W
- OUTPUT VOLTAGE: 32V
- OUTPUT CURRENT: 6A
- RESOLUTION: 10mV/1mA
- SETTING ACCURACY: Voltage :≤(0.01% + 5mV) ,Current:≤(0.2% + 3mA)
Panel lock function and Three sets of data storage calls
Long press to lock the panel to prevent misoperation. Three sets of data storage calls, Long press to save, short press to call
Over current protection, over voltage protection
When the actual output voltage is higher than the set value, the protection function is triggered and the screen displays "-ER OVP-"
When the actual output current is higher than the set value, the protection function is triggered and the screen displays "-ER OCP-"
