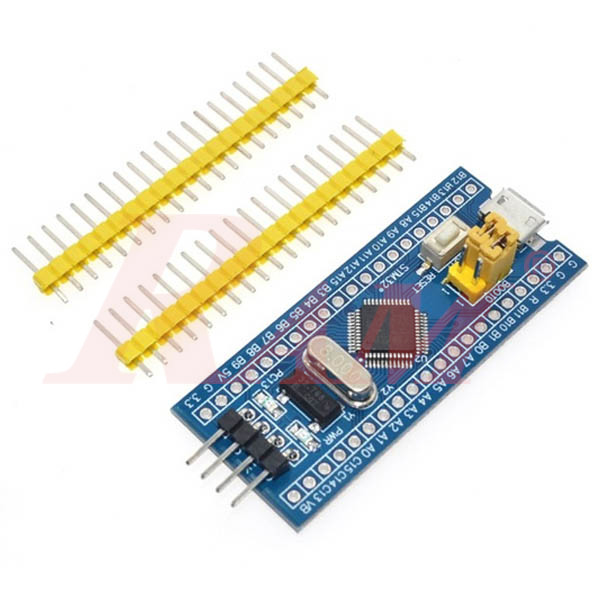

STM32F103C8T6 ARM STM32 Minimum System Development Board (Debugging Function) Original Chip

Product Introduction

This is a core chip based on STM32F103C8T6 ARM core board.

Features:

• The board is based on the most basic MCU circuit, 8Mhz crystal circuit, and USB power supply circuit.
• The core board is divided into two rows leading to all the I / O ports.
• With SWD simulation debug download interface, simple and convenient, debugging speed.
• The use of the Mirco USB interface, you can do USB communication and power supply, The USB interface, is compatible with the ordinary mobile phone charger interface.
• RTC Crystal is easy to start and more stable.
• Keil can be used to compile, and IAR compile can be downloaded through the JLink or USART1 procedures, the procedures are the owner and debugging procedures.

Chip Description:

• STM32F103C8T6
  • Package Type: LQFP
  • Number of pins: 48
  • Kernel: ARM Cortex-M3
  • Operating frequency: 72MHz
  • Storage resources: 64K Byte Flash, 20KByte SRAM
  • Interface Resources: 2x SPI, 3x USART, 2x I2C, 1x CAN, 37x I / O ports,
  • Analog-to-digital conversion: 2x ADC (12-bit / 16-channel)
  • Timers: 3 general timers and 1 advanced timer
  • Debug Download: Support JTAG / SWD debug interface to download, support for IAP.
• RT9193: 3.3V regulator chip, a maximum output of 300mA.

Interface Description:

• SWD interface: support for simulation, download and debug.
• Mirco USB interface: power supply and USB communication, do not support the download.
• USART1 interface: USART1 can be used to download the program, or use the USART1 for communication.
• MCU pin interface: leads all I / O port pins, easy to connect with peripherals.
• 5, 5V, and 3.3V power input and output interface: commonly used in external power supply, or with other modules for common ground treatment.

Other Device Description:

• Power LED (PWR): Power indicator status, can determine whether the power supply is stable.
• The user LED (PC13): to facilitate the I / O output test or indicate the program running.
• Start jumping choose programming mode: (1, the user flash memory 2, SRAM 3, system memory).
• Reset button: reset chip for the user program.
• 8M Crystal: The frequency can be set to make the system clocked at 72MHz.
• 32.768KHz Crystal: Available for built-in RTC, or for calibration.

Download

• STM32F103C8T6 Blue pill Arduino guide
