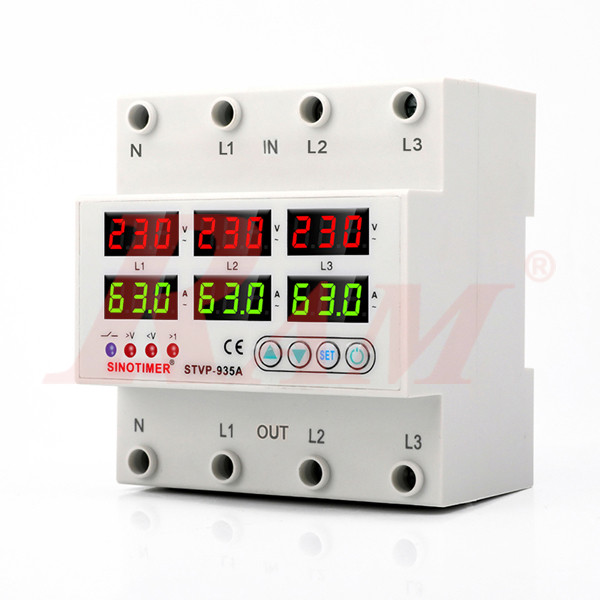

قاطع الحماية للتيار والفولت 3 فاز 63 امبير موديل STVP935

Functions:

1. Protection against overvoltage
2. Protection against Undervoltage
3. Overcurrent protection
4. Automatic recovery
5. Voltage display (voltage measurement)
6. Current display (current measurement)
7. Three-phase unbalance protection
8. Phase sequence protection (reverse phase protection)
9. Protection against breaking the zero line 10. Protection against phase faults 11 error inquiry

It will display the rotating voltage and current for each phase.

Product parameters:

1. Model number: STVP-935-63A
2. Power supply: 3 * 230V / 400V AC 50 / 60Hz
3. Maximum charging power: 1 ~ 63A adjustable (default: 63A)
4. Surge protection value range: 221V ~ 300 adjustable (default: 280V)
5. 1. Surge recovery value range: 220V ~ 299V (default 250V)
   2. Surge protection action time: 0.1 ~ 10 seconds (default 0.2s)
6. Over-voltage protection value range: 150V ~ 219V adjustable (default: 160V)
7. 1. Low voltage recovery value range: 151V ~ 220V (default 180V)
   2. Voltage protection action time: 0.1 ~ 10 seconds (default 0.2s)
8. 3 Volt Phase Imbalance Protection Value: 10% ~ 50% ~ 0FF (Default 20%)

9. 3 Volt phase unbalance protection action time: 0.1 ~ 10 seconds (default: 1s)
10. Delay time after power on: 2 ~ 255 seconds (default: 2s)
11. Recovery delay time: 2 ~ 600s (default: 60s)
12. Display model: LCD
13. Installation: 35mm DIN rail
