NOYAFA® NF-8508 9-in-1 Multifunction Network Cable Tester with Wire Mapping, Tracing, OPM, VFL for Fiber Optic & Ethernet Network

NOYAFA NF-8508 – 9-in-1 Multifunction Network Cable Tester - For Ethernet & Fiber Optic Network Maintenance and Troubleshooting

The NOYAFA NF-8508 is a professional 9-in-1 network cable tester that supports both Ethernet and fiber optic testing. Designed for engineers, technicians, and installers, it combines advanced features like OPM, VFL, PoE analysis, and digital cable tracing into a compact, efficient tool.

Features & Benefits

• 9-in-1 Multifunction Tester:
  Combines wire mapping, cable tracing, port flashing, length measurement, PoE detection, crimp test, Optical Power Meter (OPM), Visual Fault Locator (VFL), and Non-Contact Voltage (NCV) detection—all in one tool.
• Quick Wire Mapping:
  Instantly detect open, short, or crossed wires in Ethernet cables.

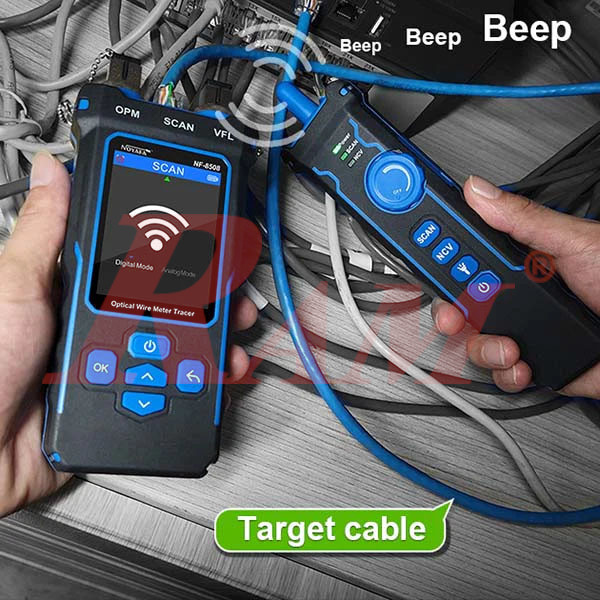

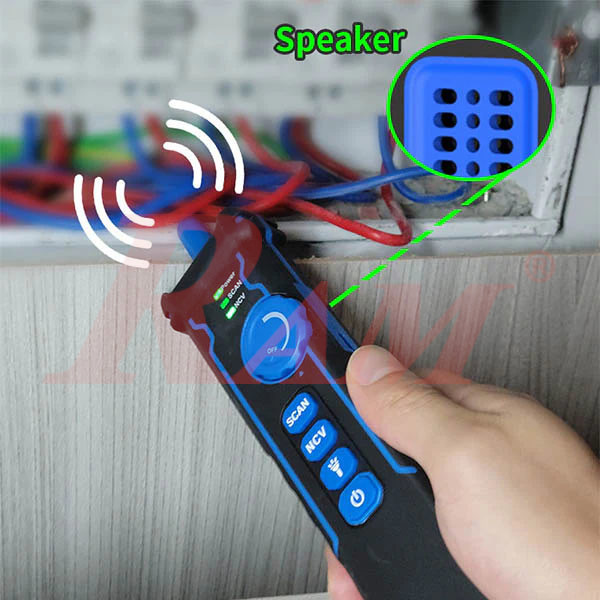

• Precision Digital Tracing:
  Digital signal tracing with anti-interference technology helps locate shielded/unshielded cables accurately.

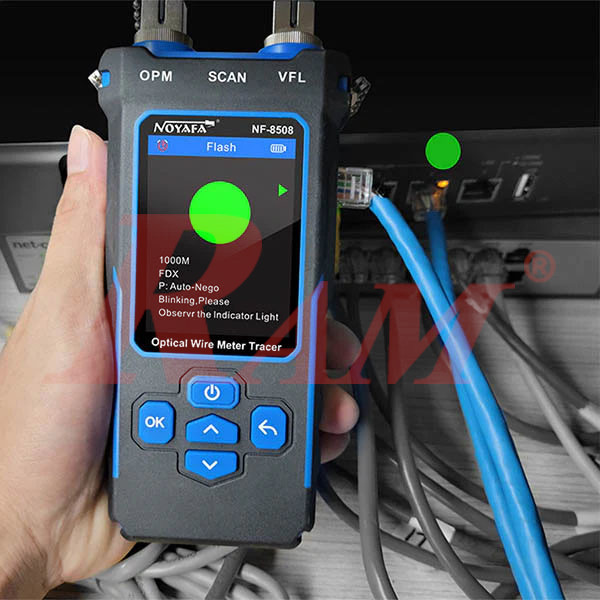

• Fast Port Identification:
  Flash target ports on switches/routers and view connection settings (speed, duplex, negotiation).

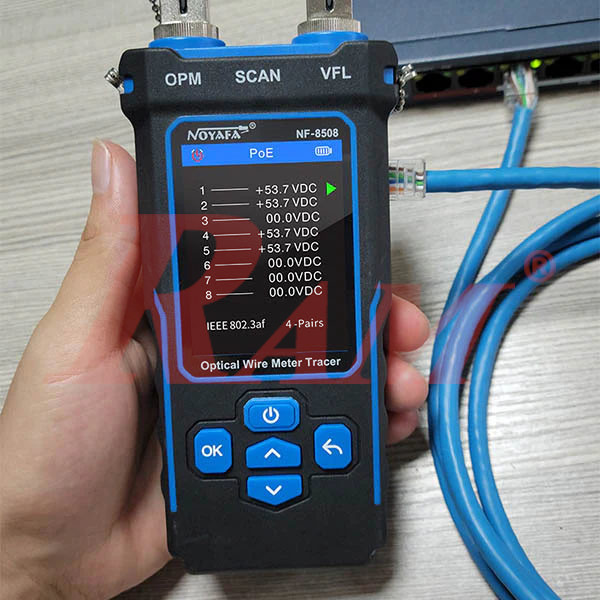

• Comprehensive PoE Testing:
  Detects PoE standard/non-standard, voltage, polarity, and power method (supports IEEE 802.3af/at).

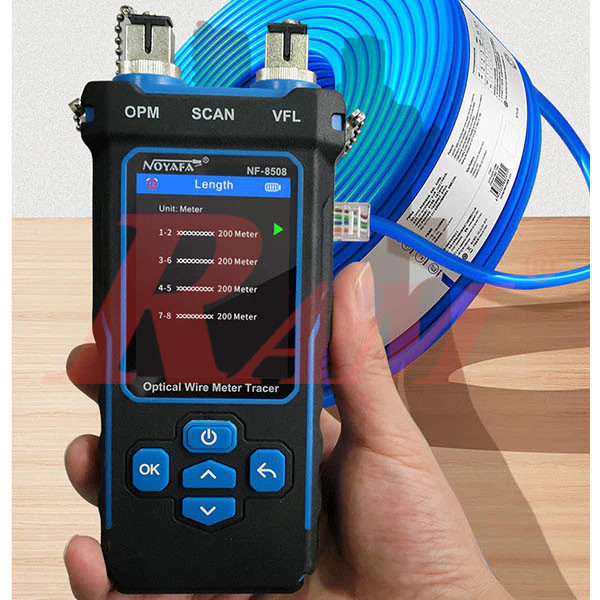

• Accurate Cable Length Measurement:
  Measures lengths from 2.5m (8.2ft) to 200m (656ft) with high accuracy.

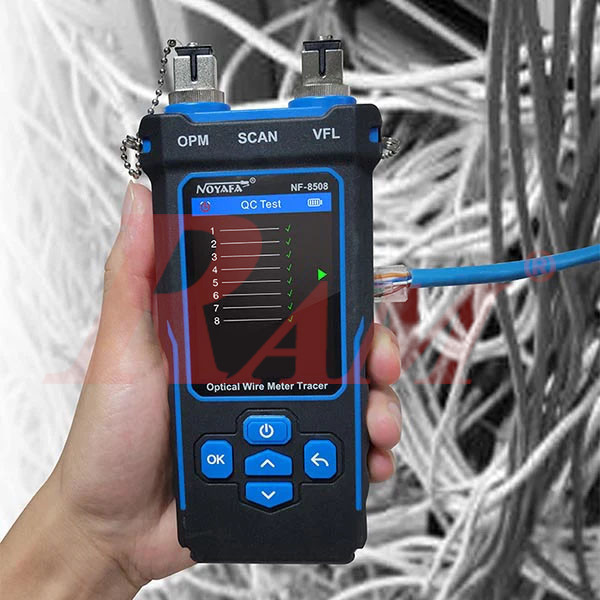

• Single-End Crimp Testing:
  Test RJ45 cable crimp quality from one end only—great for quick diagnostics.
• OPM (Optical Power Meter):
  Measures power loss in fiber optic cables (supports 1310/1550/1625nm single-mode wavelengths).

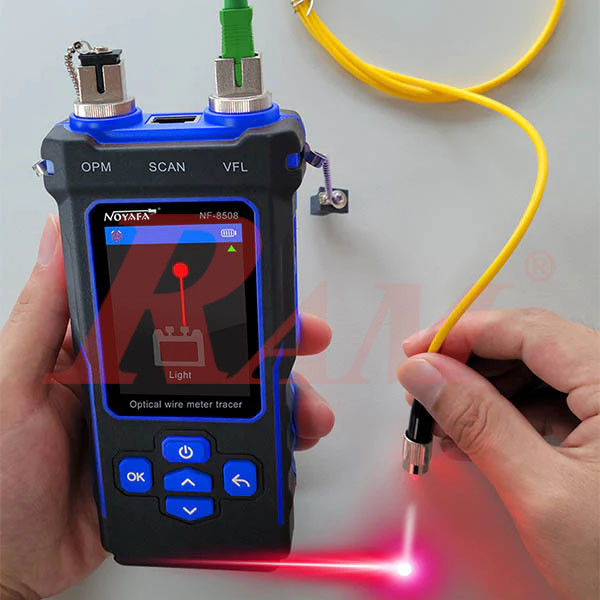

• VFL (Visual Fault Locator):
  Built-in 10mW laser with multiple modes (fast/slow flash, constant) to find breaks or bends in fiber cables.
• NCV Detection:
  Non-contact voltage sensor ensures safety by detecting live wires before connection.
• Rechargeable & Durable:
  Built-in 1500mAh lithium battery with Type-C charging for long operation time.

Key Specifications

• Cable Types: CAT5, CAT6
• Voltage Protection: 60V
• Scan Frequency: 455KHz
• Port Flashing: Supported
• Length Measurement Accuracy:
  • ≤20m: ±1.6m
  • 20–100m: ±2.4m
  • 100m: ±3.2m
• PoE Detection:
  • Standard/Non-standard
  • End connection / middle jumper / 8-core powered
• VFL Power: 10mW
• OPM Wavelengths: 1310 / 1550 / 1625nm
• Crimp Test: RJ45 (8-core), min cable length: 210cm
• Battery: 3.7V 1500mAh lithium polymer
• Charging: Type-C port
• Extra Functions: NCV detection, LED lamp, low battery warning

Download:

• User Manual
