CL01-12 High Voltage Diode 12kV 350mA for Microwave Ovens
Product Description

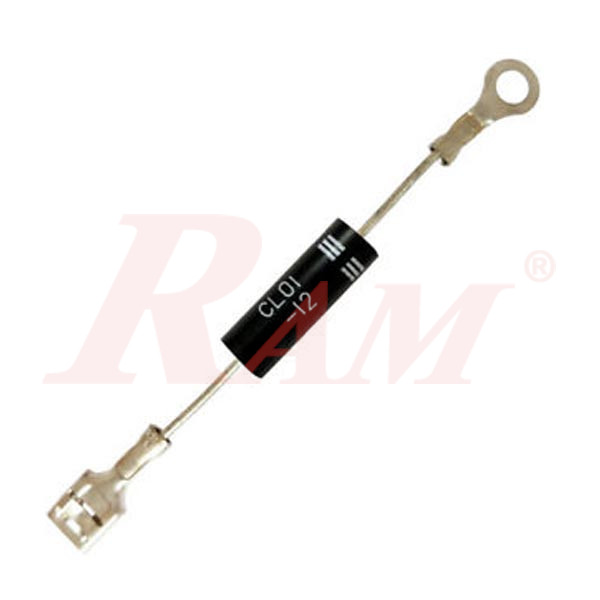

The CL01-12 is a high-voltage rectifier diode designed primarily for microwave oven power supply circuits, high-voltage rectifiers, and specialized electrostatic equipment. Featuring a peak repetitive reverse voltage rating of 12kV (12,000V) and a forward current capacity of 350mA, it converts high-voltage AC into DC for use in microwave oven high-voltage circuits.
Pre-terminated with a female spade connector on one end and a ring terminal lug on the other, it provides a convenient replacement assembly for compatible microwave oven diodes.
Key Features
- High Repetitive Peak Reverse Voltage: Rated for up to 12kV (12,000V).
- Pre-Crimped Terminals: Features a 6.3mm female spade connector and a ring terminal lug for convenient installation.
- High Reliability: Designed for high-voltage rectification applications.
- Compatible Replacement: Suitable for replacing compatible microwave oven high-voltage diodes, subject to matching specifications and terminal configuration.
Product Specifications
- Model Number: CL01-12
- Diode Type: High-Voltage Rectifier Diode
- Peak Repetitive Reverse Voltage (VRRM): 12kV (12,000V)
- Average Forward Rectified Current (IF(AV)): 350mA (0.35A)
- Maximum Forward Voltage Drop (VF): Approximately 11V–13V (at rated current)
- Reverse Recovery Time (trr): Fast recovery (≤100ns)
- Operating Temperature Range: -40°C to +130°C
- Termination: Female Spade Connector + Ring Terminal Lug
Wiring & Installation Guide
- Ring Terminal Lug: Typically connects to the microwave oven chassis ground, depending on the diode design and circuit configuration.
- Female Spade Connector: Connects to the appropriate terminal in the high-voltage rectifier circuit, according to the appliance wiring diagram.
High-Voltage Safety Warning
Microwave oven high-voltage capacitors can retain lethal electrical charges even after the appliance has been unplugged. Servicing these circuits should only be performed by qualified technicians using appropriate high-voltage safety procedures and equipment. Do not handle or test the diode unless the appliance has been made safe by a qualified technician.
