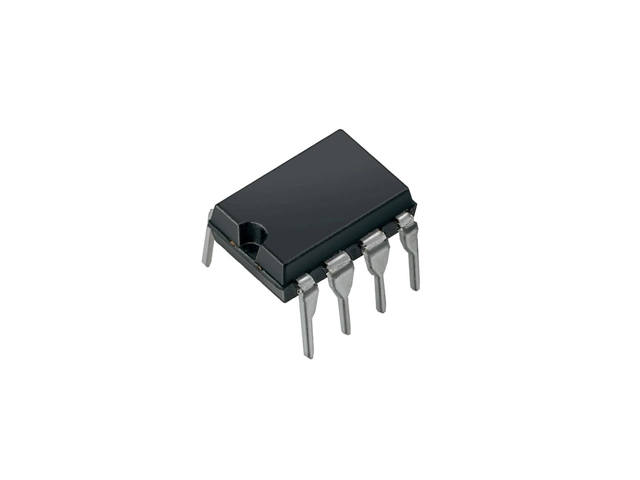

LM386N

https://www.ram-e-shop.com/web/image/product.template/5927/image_1920?unique=6d119cf

Low Voltage Audio Power Amplifier

6.00 EGP 6.0 EGP 6.00 EGP

6.00 EGP

Not Available For Sale

هذه التركيبة غير موجودة.

 متاح للشراء مباشرة من فرع رام للالكترونيات
 متاح خدمة الشحن للمنتج خلال 2-3 ايام عمل


مرجع داخلي: LM386

General Description:

The LM386 is a power amplifier designed for use in low-voltage consumer applications. The gain is internally set to 20 to keep external part count low, but the addition of an external resistor and capacitor between pins 1 and 8 will increase the gain to any value from 20 to 200.
The inputs are ground referenced while the output automatically biases to one-half the supply voltage. The quiescent power drain is only 24 milliwatts when operating from a 6 volt supply, making the LM386 ideal for battery operation.

Features:

  • Battery operation
  • Minimum external parts
  • Wide supply voltage range: 4V–12V or 5V–18V
  • Low quiescent current drain: 4mA
  • Voltage gains from 20 to 200
  • Ground-referenced input
  • Self-centering output quiescent voltage
  • Low distortion: 0.2% (AV=20, VS=6V, RL=8W, PO=125mW, f=1kHz)
  • Available in 8 pin MSOP package

Applications:

  • AM-FM radio amplifiers
  • Portable tape player amplifiers
  • Intercoms
  • TV sound systems
  • Line drivers
  • Ultrasonic drivers
  • Small servo drivers
  • Power converters
