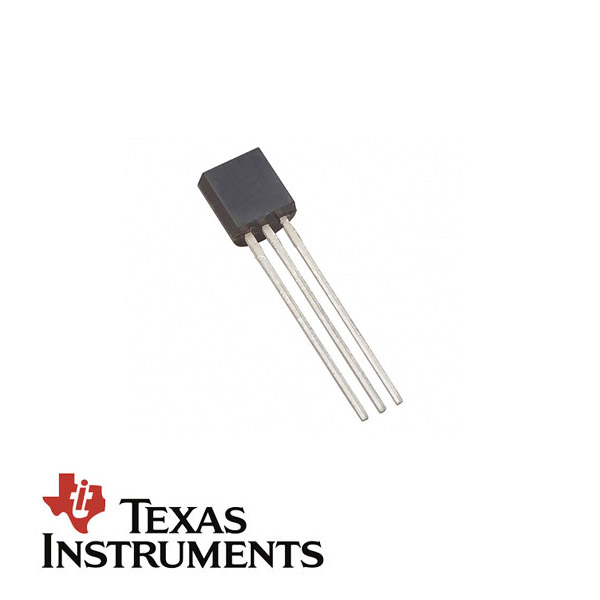

LM35DZ - Original

https://www.ram-e-shop.com/web/image/product.template/5923/image_1920?unique=17b8693

Temperature Sensor −55°C to +150°C
Original Texas Instruments Brand

75.00 EGP 75.0 EGP 75.00 EGP

75.00 EGP

Not Available For Sale

هذه التركيبة غير موجودة.

 متاح للشراء مباشرة من فرع رام للالكترونيات
 متاح خدمة الشحن للمنتج خلال 2-3 ايام عمل


مرجع داخلي: LM35DZ

Description:

The LM35DZ is a precision integrated-circuit temperature sensor, with an output voltage linearly proportional to the Celsius (Centigrade) temperature. It offers a simple, low-cost solution for temperature measurement in various applications, providing accurate readings without the need for external calibration.

Key Features:

  • Calibrated Directly in Celsius (Centigrade)
  • Linear +10 mV/°C Scale Factor
  • Ensured Accuracy of ±0.5°C at 25°C
  • Operating Temperature Range: 0°C to +100°C
  • Low Self-Heating: 0.08°C in Still Air
  • Low Output Impedance: 0.1 Ω for 1 mA Load
  • Operates from 4 V to 30 V DC
  • Low Current Drain: Less than 60 μA
  • Suitable for Remote Applications
  • Package Type: TO-92 (3-pin)

Applications:

  • Environmental Monitoring Systems
  • HVAC Systems
  • Battery Management
  • Home Appliances
  • Industrial Process Control
  • Medical Devices

Electrical Characteristics:

  • Supply Voltage Range: 4 V to 30 V DC
  • Output Voltage: 10 mV per °C
  • Accuracy: ±0.5°C at 25°C
  • Non-Linearity: ±¼°C Typical
  • Current Consumption: Less than 60 μA
  • Self-Heating: 0.08°C in Still Air

Pin Configuration:

  1. VCC: Supply Voltage
  2. VOUT: Output Voltage
  3. GND: Ground

Typical Applications:

  • Temperature Measurement and Control Systems
  • Thermal Protection for Electronic Devices
  • Remote Temperature Sensing
  • Consumer Electronics

Note: The LM35DZ does not require any external calibration or trimming to provide typical accuracies of ±0.5°C at room temperature and ±0.75°C over a full −55°C to +150°C temperature range. Its low output impedance, linear output, and precise inherent calibration make interfacing to readout or control circuitry especially easy.
