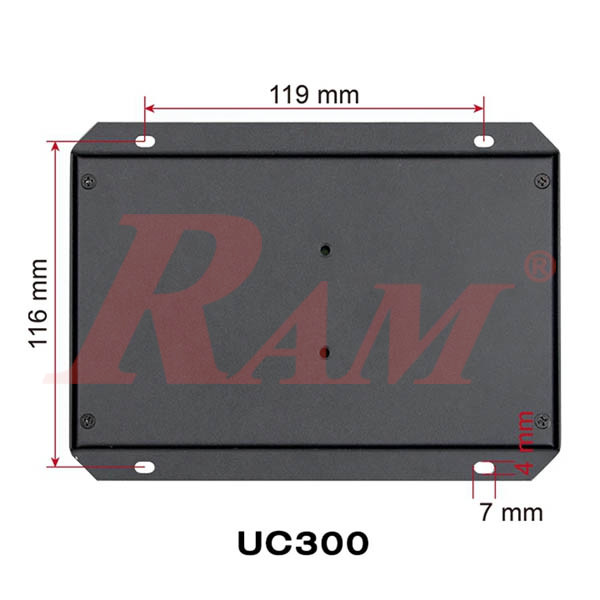

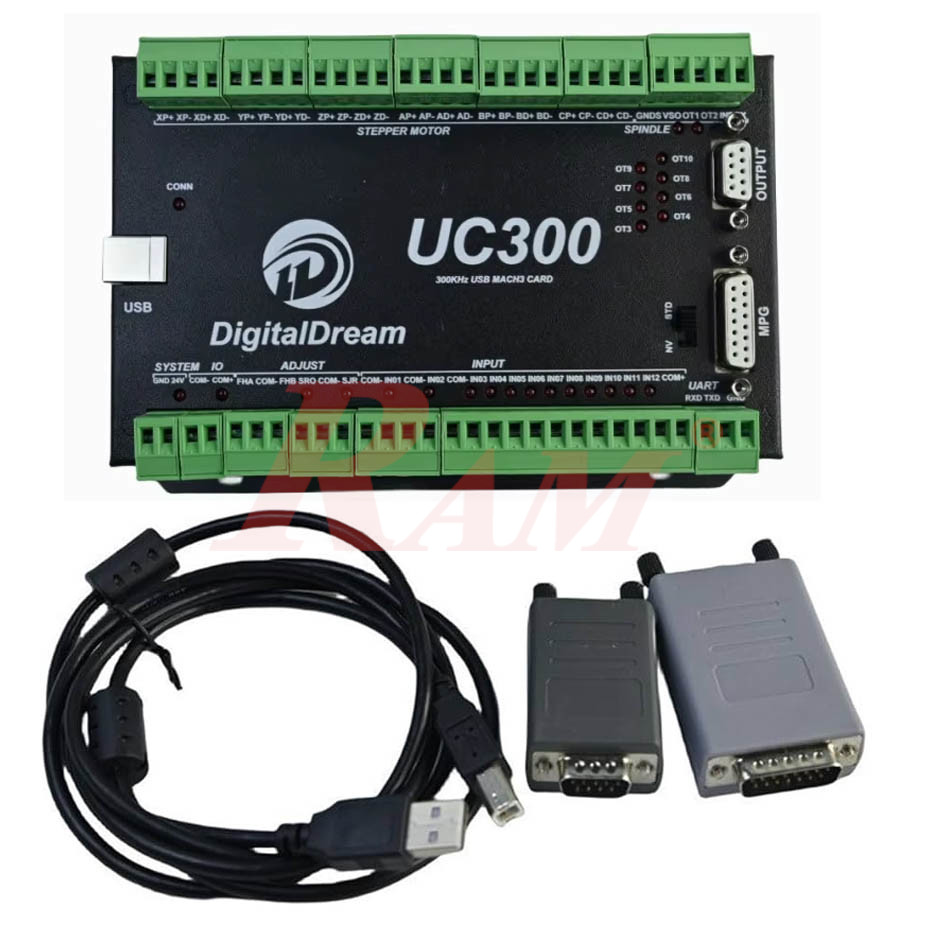

UC300 Mach3 USB 4-Axis CNC Motion Controller
Overview:
The UC300 is a high-performance external motion controller designed for use with Mach3 software. It supports up to 4 axes (X, Y, Z, A) and communicates via USB, eliminating the need for a parallel port. This controller is suitable for both stepper and servo motor systems, offering precise and reliable control for various CNC applications.
Key Features:
- Axis Support: Controls 3 to 4 axes (X, Y, Z, A)
- Pulse Output: Up to 300 kHz per axis for smooth and accurate motion
- USB Communication: Seamless connection with Mach3 software via USB
- Motor Compatibility: Supports stepper and servo motors with pulse and direction interfaces
- Digital Inputs: 12 opto-isolated digital input ports
- Digital Outputs: 10 opto-isolated digital output ports
- Analog Output: One 0–10V analog output for spindle speed control (configurable to PWM)
- Power Supply: Requires 24V DC input with a current rating of at least 1A
- Motion Control Chip: Equipped with an ARM-based motion control chip for reliable performance
- MPG Support: Compatible with standard Manual Pulse Generators (MPG) and Digital Dream MPG
Technical Specifications:
- Maximum Pulse Frequency: 300 kHz per axis
- Input Voltage: 24V DC (≥1A)
- Digital Inputs: 12 opto-isolated
- Digital Outputs: 10 opto-isolated
- Analog Output: 0–10V (configurable to PWM)
- Communication Interface: USB
- Supported Software: Mach3
- Supported Motors: Stepper and servo motors with pulse/direction interface
Applications:
- CNC milling machines
- CNC routers
- CNC plasma cutters
- CNC engraving machines
- Other CNC machinery requires precise multi-axis control
Note: Ensure that your system meets the power requirements and that the controller is properly configured within Mach3 software for optimal performance.
