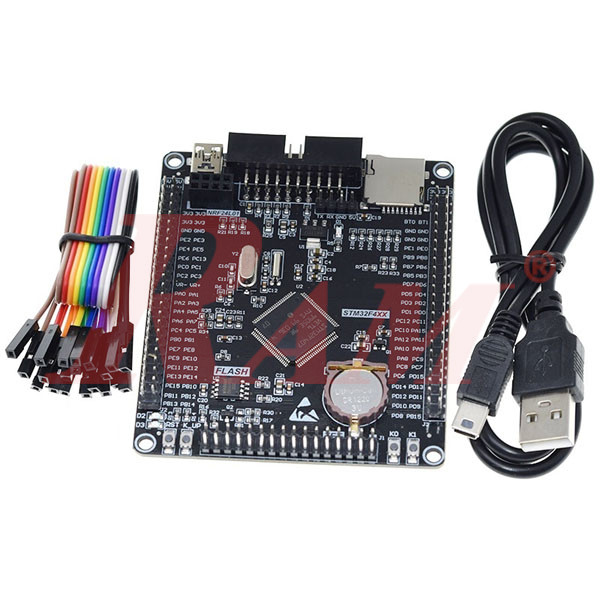

STM32F407VET6 ARM STM32 Minimum System Development Board

STM32F407VET6 ARM Cortex-M4 Minimum System Development Board

Product Overview:

The STM32F407VET6 Development Board is a high-performance platform designed for embedded system developers and enthusiasts. Featuring the ARM Cortex-M4 32-bit RISC core operating at 168 MHz, it offers a rich set of peripherals and interfaces, making it ideal for a wide range of applications, from industrial control to consumer electronics.

Key Features:

• Microcontroller: STM32F407VET6
  • Core: ARM® Cortex®-M4 32-bit RISC with FPU
  • Operating Frequency: Up to 168 MHz
  • Flash Memory: 512 KB
  • SRAM: 192 KB + 4 KB backup SRAM
  • Package: LQFP100
• Operating Voltage: 1.8V to 3.6V
• Peripherals and Interfaces:
  • GPIO: Up to 82 I/O ports with interrupt capability
  • Timers: 17 timers, including advanced-control, general-purpose, and basic timers
  • ADC: 3 × 12-bit ADCs with up to 16 channels
  • DAC: 2 × 12-bit DACs
  • Communication Interfaces:
    • USART/UART: 6
    • SPI: 3
    • I2C: 3
    • CAN: 2
    • SDIO: 1
    • USB 2.0 Full Speed/High Speed
    • Ethernet MAC 10/100
    • FSMC for external memory interfaces
    • Camera interface (DCMI)
• On-Board Features:
  • Micro USB connector for power and programming
  • JTAG/SWD header for debugging
  • MicroSD card slot
  • SPI Flash memory (e.g., W25Q16)
  • NRF24L01 wireless module interface
  • TFT LCD interface
  • Real-Time Clock (RTC) with backup battery support
  • User LEDs and buttons
  • Boot mode selection jumpers

Applications:

• Embedded system development
• Industrial automation
• Consumer electronics
• Robotics
• IoT devices
• Educational and research projects
