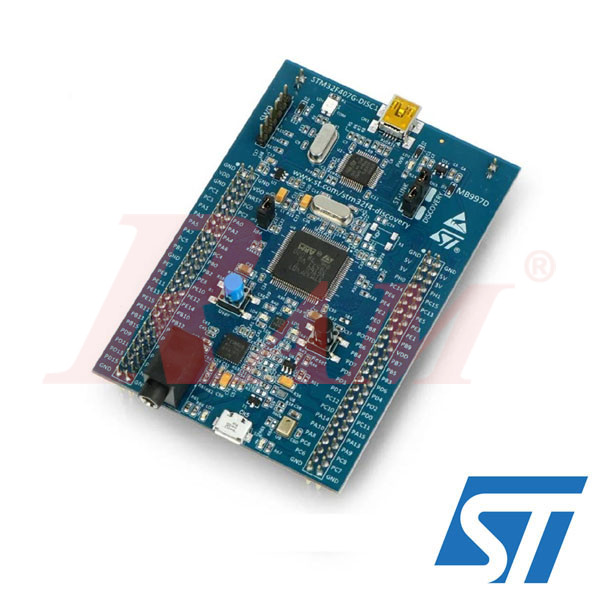

The STM32F407G-DISC1 is a versatile development board designed to harness the capabilities of the STM32F407VGT6 microcontroller. Ideal for both beginners and experienced developers, it facilitates the creation of applications that leverage the high-performance features of the STM32F4 series.
Key Features:
- Microcontroller: STM32F407VGT6 with 32-bit ARM® Cortex®-M4 core featuring FPU, operating at up to 168 MHz, with 1 MB Flash memory and 192 KB SRAM in LQFP100 package.
- On-board Debugger: Integrated ST-LINK/V2-A debugger/programmer with USB re-enumeration capability supporting mass storage, Virtual COM port, and debug port.
- USB OTG FS: Full-speed USB On-The-Go with Micro-AB connector.
-
Audio Features:
- ST-MEMS MP45DT02 omnidirectional digital microphone.
- CS43L22 audio DAC with integrated class D speaker driver.
- Motion Sensor: ST-MEMS 3-axis accelerometer (LIS302DL or LIS3DSH).
-
User Interface:
- Two push-buttons: User and Reset.
-
Eight LEDs:
- LD1 (red/green) for USB communication.
- LD2 (red) for 3.3 V power indication.
- LD3 (orange), LD4 (green), LD5 (red), LD6 (blue) as user LEDs.
- LD7 (green) for USB VBUS.
- LD8 (red) for USB over-current indication.
-
Connectivity:
- USB Micro-AB connector.
- Stereo headphone output jack.
- 2.54 mm pitch extension header for all LQFP100 I/Os, facilitating quick connection to prototyping boards and easy probing.
-
Power Supply Options:
- Powered via USB VBUS, ST-LINK, or external sources.
- Supports external application power supply of 3 V and 5 V.
-
Software Support:
- Comprehensive free software including a variety of examples, part of STM32CubeF4 MCU Package, or STSW-STM32068 for using legacy standard libraries.
- Compatible with a wide range of Integrated Development Environments (IDEs), including IAR Embedded Workbench®, MDK-ARM, and STM32CubeIDE.
Technical Specifications:
- Microcontroller: STM32F407VGT6 (ARM Cortex-M4, 168 MHz, 1 MB Flash, 192 KB SRAM).
- Debug Interface: Integrated ST-LINK/V2-A.
- USB: USB OTG FS with Micro-AB connector.
- Audio: MP45DT02 digital microphone, CS43L22 audio DAC with class D speaker driver.
- Sensors: LIS302DL or LIS3DSH 3-axis accelerometer.
- LEDs: 8 (USB communication, power, user, USB OTG indicators).
- Buttons: 2 (User and Reset).
- Power Supply: USB VBUS, ST-LINK, or external 3 V/5 V sources.
- Expansion: 2.54 mm pitch extension header for all LQFP100 I/Os.
- Dimensions: Approximately 66 mm x 97 mm.
- Operating Voltage: 5 V.
- RoHS Compliance: Ecopack1.
- ECCN (US): 3A991.a.2.
Applications:
- Audio processing and playback.
- Motion sensing and gesture recognition.
- USB device and host applications.
- Embedded system prototyping.
- Educational and training purposes.
