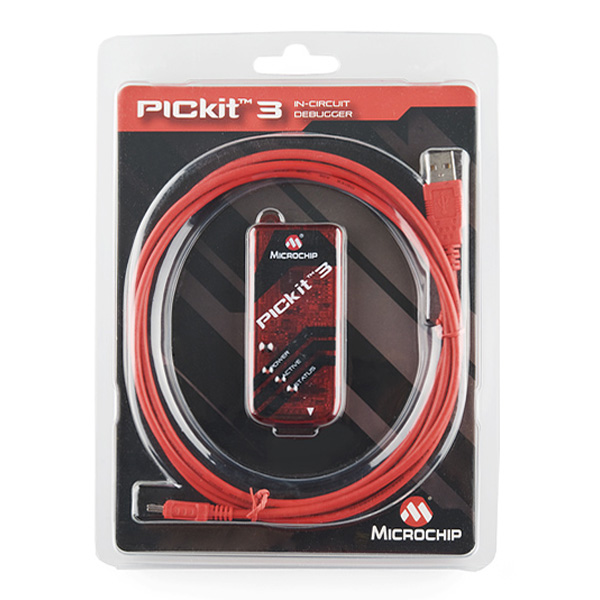

PICkit 3 In-Circuit USB PIC Development Programmer & Debugger - Original

This is the new PICkit 3 (Original from Microchip).  The PICkit 3 allows debugging and programming of PIC and dsPIC microcontrollers using the powerful graphical user interface of the MPLAB Integrated Development Environment (IDE). The MPLAB PICkit 3 is connected to a PC using a full-speed USB interface and can be connected to the target via an Microchip debug (RJ-11) connector (compatible with MPLAB ICD 2/ 3 and MPLAB REAL ICE). The connector uses two device I/O pins and the reset line to implement in-circuit debugging and In-Circuit Serial Programming. mini-USB cable included.

Features

• USB (Full speed 12 Mbits/s interface to host PC)
• Real-time execution
• MPLAB IDE compatible (free copy included)
• Built-in over-voltage/short circuit monitor
• Firmware upgradeable from PC/web download
• Fully enclosed
• Supports low voltage to 2.0 volts (2.0v to 6.0v range)
• Diagnostic LEDs (power, busy, error)
• Read/write program and data memory of microcontroller
• Erase of program memory space with verification
• Freeze-peripherals at breakpoint

Download

• Software
