DIY Blue Sixteen Music Box Electronic Kit

Product Name:

Blue Sixteen Music Box Electronic DIY Kit

Product Overview:

The Blue Sixteen Music Box Electronic DIY Kit is an engaging and educational project that allows enthusiasts to assemble a functional music box capable of producing 16 distinct analog sounds. Ideal for beginners and hobbyists, this kit provides hands-on experience in electronics assembly and soldering, making it a perfect introduction to the world of DIY electronics.

Key Features:

• 16 Distinct Sounds including machine gun, fire truck, ambulance, police siren, cricket, alarm, electronic signal, bird call, insect chirping, whistle, telegram, bird singing, heavy machine gun, car siren, bass sound, and racing car sound.
• Manual Coding Control: select the desired sound by setting a 4-bit binary code (ABCD).
• Supports External Coding for integration with other electronic projects.
• Great educational tool to learn soldering, basic electronics, and sound generation.
• Can be used as a doorbell, alarm, or novelty sound generator in various projects.

Specifications:

• Operating Voltage: 4.5V to 5V

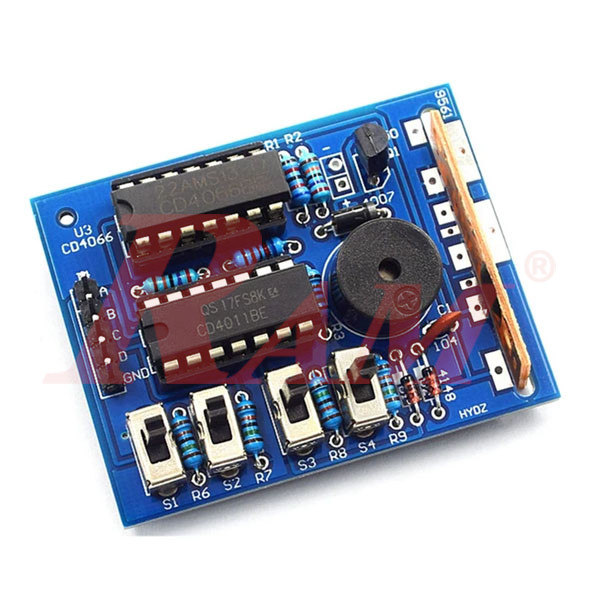

• PCB Dimensions: 50mm (L) x 40mm (W)
• Control Modes: Manual coding via switches, external coding support
• Sound Output: 16 selectable analog sounds

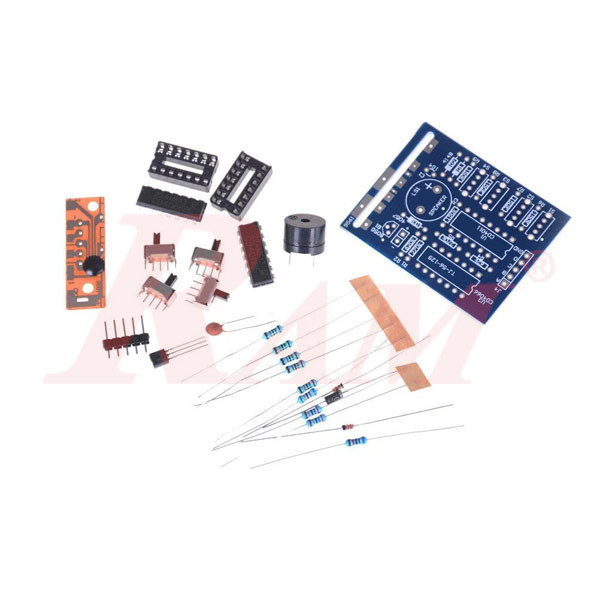

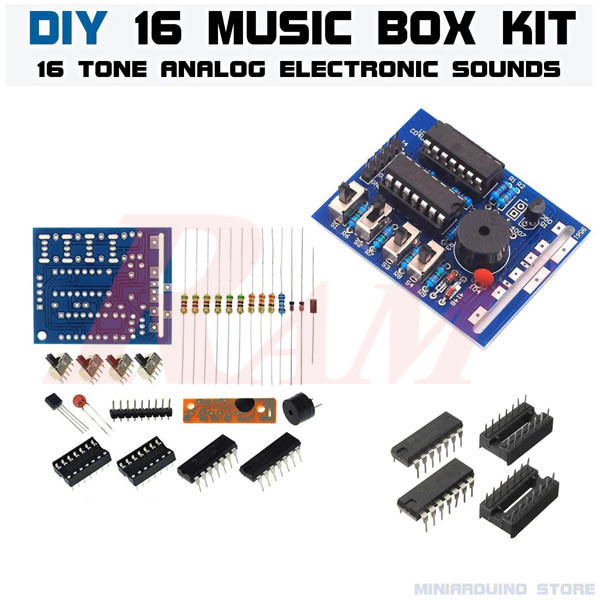

• Included Components: Pre-soldered PCB board, electronic components for assembly, user manual

Educational Benefits:

• Hands-on experience in soldering and circuit assembly
• Introduces concepts of sound synthesis, binary coding, and electronic circuit design
• Encourages creativity through sound customization

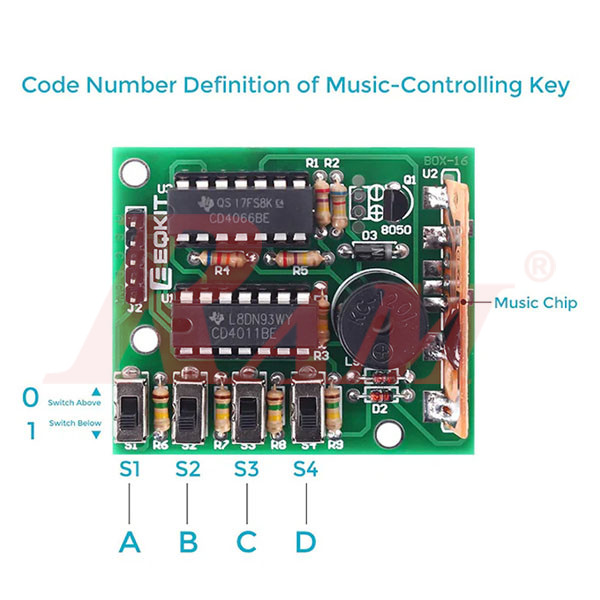

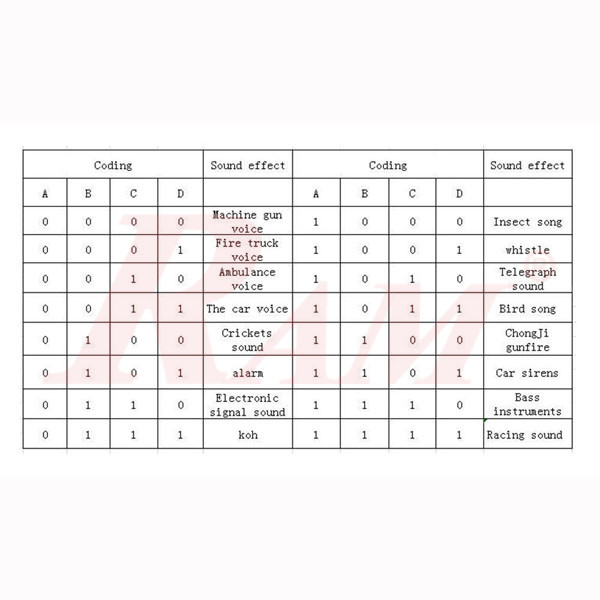

Music Coding (ABCD) by Switches (check product photos):

• 0000: Machine gun voice
• 0001: Fire truck voice
• 0010: Ambulance voice
• 0011: The car voice
• 0100: Crickets sound
• 0101: Alarm
• 0110: Electronic signal sound
• 0111: Koh
• 1000: Insect song
• 1001: Whistle
• 1010: Telegraph sound
• 1011: Bird song
• 1100: ChongJi gunfire
• 1101: Car sirens
• 1110: Bass instruments sound
• 1111: Racing sound

Applications:

• DIY electronics projects, school assignments, hobbyist endeavors
• Educational tool for teaching electronics and coding principles
• Novelty devices such as custom doorbells, alarms, and sound effects
