Introductions

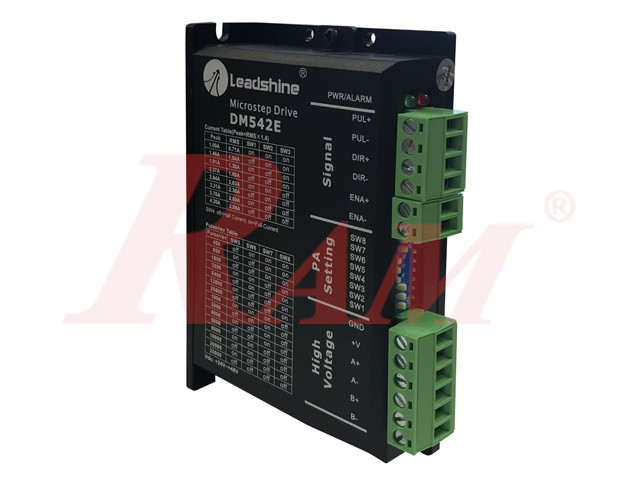

The DM542E is a fully digital stepper drive developed with advanced DSP control algorithm based on the latest motion control technology. It has achieved a unique level of system smoothness, providing optimal torque and nulls mid-range instability. Its motor auto-identification and parameter auto-configuration feature offers quick setup to optimal modes with different motors. Compared with traditional analog drives, DM542E can drive a stepper motor at much lower noise, lower heating, and smoother movement. Its unique features make DM542E an ideal choice for high-requirement applications.

Features

• Anti-Resonance provides optimal torque and nulls mid-range instability
• Motor auto-identification and parameter auto-configuration when power on, offer optimal responses with different motors
• Multi-Stepping allows a low resolution step input to produce a higher microstep output, thus offers smoother motor movement
• 15 selectable microstep resolutions including 400, 800, 1600, 3200, 6400, 12800, 25600, 1000, 2000, 4000, 5000, 8000, 10000, 20000, 25000
• Soft-start with no “jump” when powered on
• Input voltage 20-50VDC
• 8 selectable peak current including 1.00A, 1.46A, 1.91A, 2.37A, 2.84A, 3.31A, 3.76A, 4.20A
• Pulse input frequency up to 200 KHz, TTL compatible and optically isolated input
• Automatic idle-current reduction
• Suitable for 2-phase and 4-phase motors
• Support PUL/DIR mode
• Over-voltage, over-current, protections
