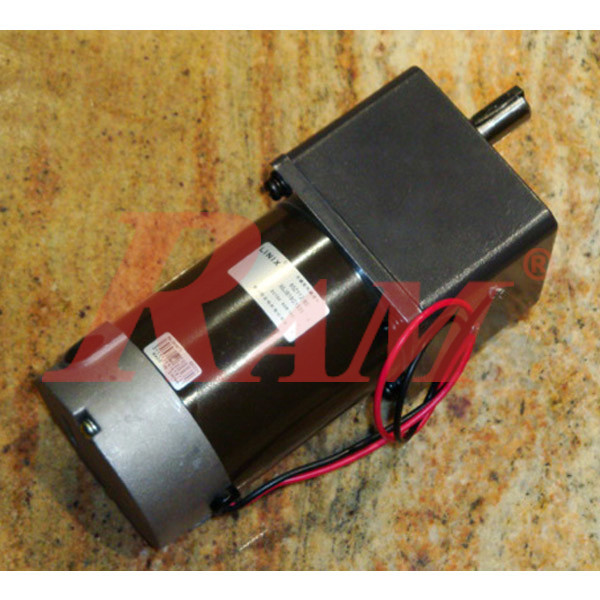

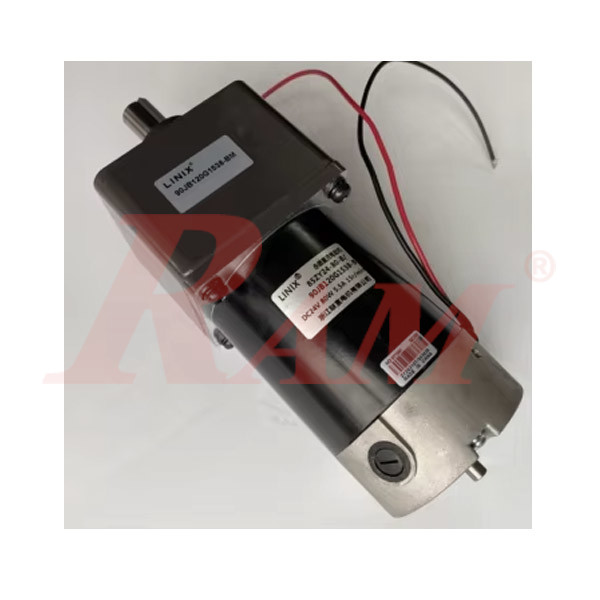

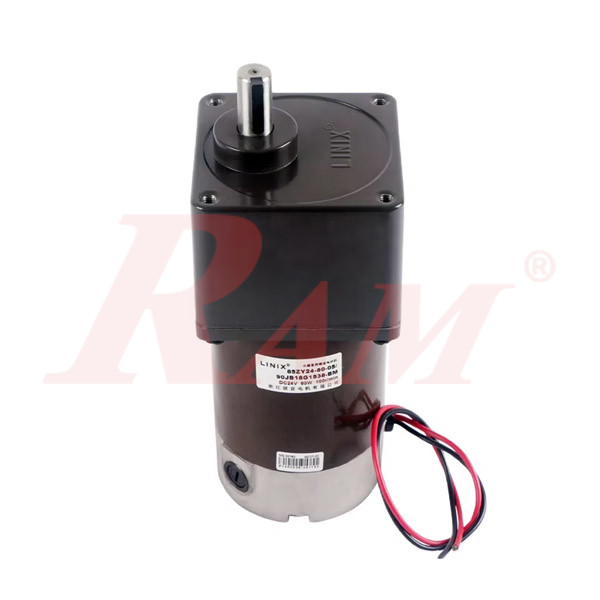

DC Geared Motor HIGH TORQUE 80 Watt 100 rpm 8.78 N.m - Model ZYT76-100R-90mm ماتور جيربوكس 12 فولت عزم عالي 80 واط 100 لفة/د

12V DC High Torque Geared Motor – 80W / 100 RPM (LINIX 85ZY12-80/90JB18G -ZYT76-100R-90mm)

Product Description

The LINIX 85ZY12-80/90JB18G is a heavy-duty, high-torque 12V DC geared motor designed for demanding industrial, automotive, and automation applications. Delivering 80W of rated power with an integrated 1:18 reduction gearbox, this motor provides a rated speed of 100 RPM with high output torque.

Engineered for intermittent duty (S2, 30 minutes) with high efficiency of approximately 64%, it is designed to handle heavy loads in applications such as electric gates, industrial conveyors, custom mobility platforms, heavy-duty winches, and automated machinery.

Key Features

• High Power & Torque: 80W nominal power rating providing high rotational output torque across its operating range.
• Integrated 1:18 Gearbox: Precision-engineered reduction gearbox for efficient and durable power transfer.
• High Efficiency Operation: Peak motor efficiency reaching over 64% under load.
• Reversible Rotation: Easily change the rotation direction by reversing the power supply polarity.
• Industrial Build Quality: Rugged 90mm frame housing designed for demanding applications.

Product Specifications

• Model Number: 85ZY12-80/90JB18G (ZYT76-100R)
• Operating Voltage: 12V DC
• Rated Output Power: 80W
• Rated Speed: 100 RPM ± 10%
• Gearbox Reduction Ratio: 1:18
• Duty Cycle: S2 (30 minutes)
• Maximum Output Torque: Up to 8.78 N·m (at peak power output)
• No-Load Speed: Approximately 114 RPM
• No-Load Current: Approximately 2.13A
• Rated Current: Approximately 9.9A–11.2A (under load)
• Motor Outer Diameter: 90mm
• Output Shaft Diameter: 15mm (with keyway)
• Overall Length: 191.5mm

Wiring & Direction Control

• Red Wire: Connect to the positive (+) terminal.
• Black Wire: Connect to the negative (−) terminal.
• Default Rotation Direction: Counter-clockwise (CCW), when viewed from the output shaft end.
• Direction Reversal: Reverse the red and black wire connections to change the output shaft rotation to clockwise (CW).

Download

• DATASHEET
